Bolus Calculator¶

Bolus Calculator Interface¶

You can access the bolus calculator by tapping the icon

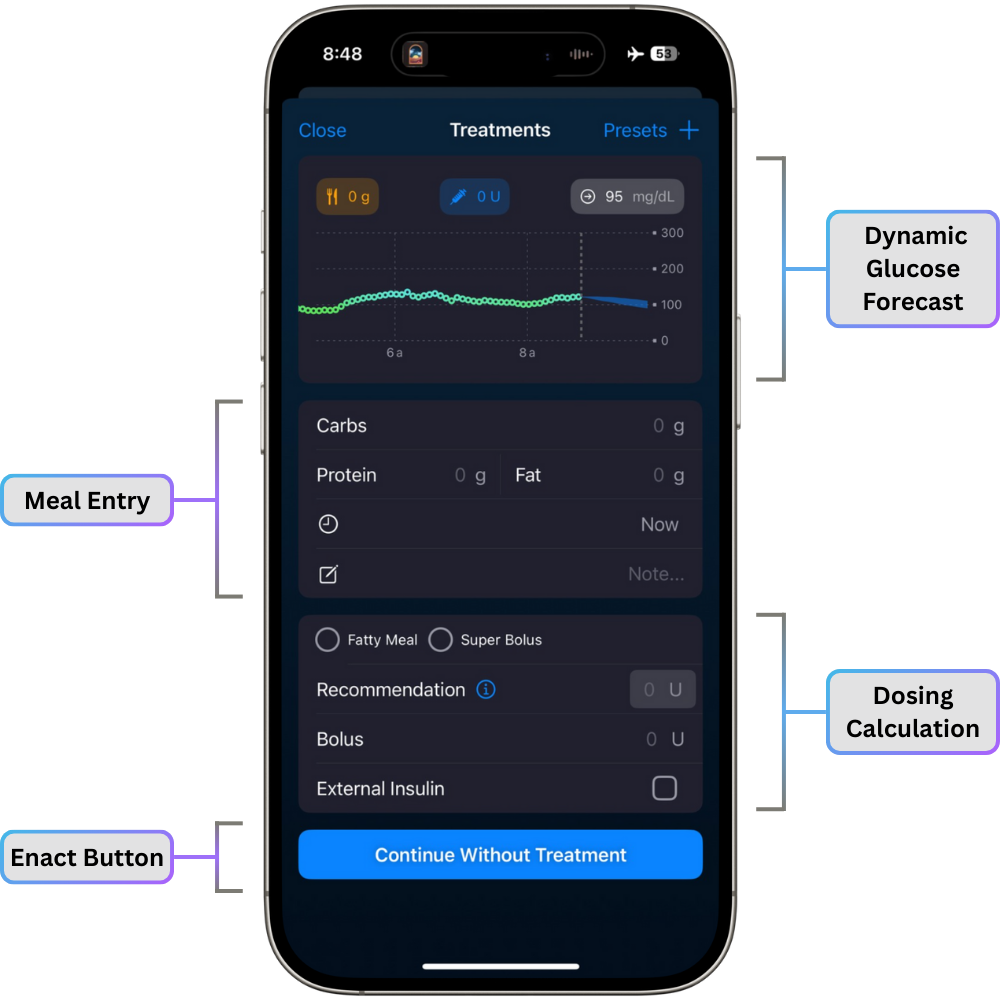

There are 4 main sections of the Bolus Calculator Interface

Dynamic Glucose Forecast¶

As you enter your carbs and insulin, this dynamic graph at the top of the bolus calculator will adjust the forecast lines or cone to account for your future data.
Watch the video below to see this in action.

Meal Entry¶

In the Meal Entry section, you will enter your carbs. If you have FPU's enabled, you can also enter your fat and protein.

Below this, there is a place to enter the time for future or past carbs.

You can also add a note for this meal.

Dosing Calculation¶

In the Dosing Calculation section, it starts with the Fatty Meal and Super Bolus options at the top, if you have those enabled.

Below that is the suggested bolus amount that Trio has calculated. Tap the "i" icon for more details and read the section below for more details on the information shared when you tap on this icon.

If you check the "External Insulin" box, the bolus will be added to your IOB, but it will not be delivered by Trio.

Enact Button¶

This button will show one of the following messages:

• Continue Without Treatment: This means no COB or IOB will be added
• Log Carbs: Carbs will be logged, but no insulin will be delivered
• Log FPU: FPUs will be logged, but no insulin will be delivered
• Log Meal: Both carbs and FPUs will be logged, but no insulin will be delivered
• Log Meal/FPU/Carbs and Enact Bolus: Carbs and/or FPUs will be logged and insulin will be delivered
• Log External Insulin: Insulin will be added to IOB, but it will not be delivered

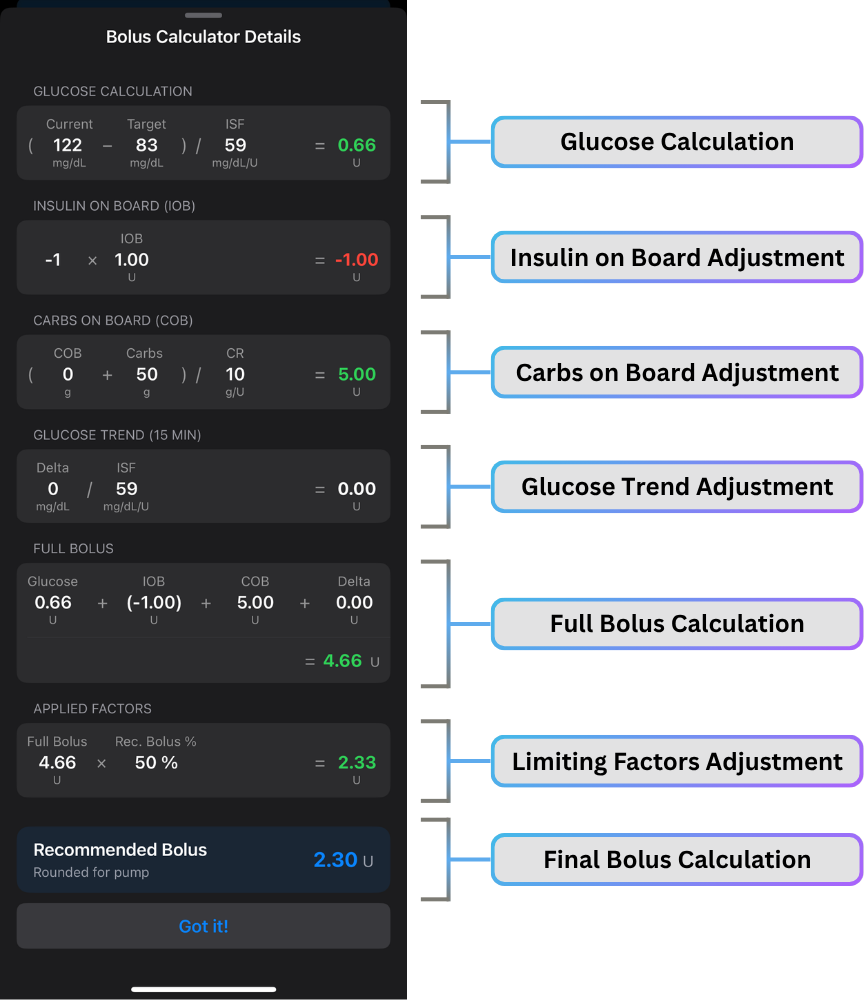

How Does the Bolus Calculator Determine Dosage?¶

There are multiple calculations that are used to determine the bolus recommendation in Trio.

A positive calculation will be shown in green and a negative calculation will be shown in red.

Glucose Calculation¶

The bolus calculator in Trio starts with your basic dosage needed to address your current glucose reading. If your glucose is below your target, it will be a negative number. If your glucose is above your target, it will be a positive number.

Let's walk through Bill's current bolus calculation, starting with the first step, Glucose Calculation.

Trio takes many additional factors into account. Next, it will adjust for the amount of insulin already in his system.

Insulin on Board Adjustment¶

The next step in the bolus calculation is the adjustment for current insulin on board (IOB). To prevent the calculator from giving you insulin already given, it subtracts your current IOB.

This will also replace any missing insulin that may have occurred after basal reduction or suspension. If you are trending low before a meal, this will add any negative IOB to return you to baseline basal in preparation for addressing your insulin needed for the incoming carbs.

Let's look at how Trio addresses both positive and negative IOB:

There are still more factors for Trio to take into account, so we aren't done yet! Next, let's see how your current COB and the new carbs entered will influence the bolus recommendation.

Carbs on Board Adjustment¶

The previous step took into account the insulin you already have in your system. This next step will add the insulin needed for both the carbs already on board and the new carbs you just entered, which serves to negate any IOB that was due to previous meals (COB).

Let's look at how Trio addresses times when there are carbs on board and times when there are no carbs on board:

We aren't done yet! Aren't you glad Trio is doing all of this for you and you only need to follow along to understand the reasoning behind it? Next, it will look at how our glucose is trending to ensure it's not over or under treating you.

Glucose Trend Adjustment¶

Your glucose trend (Delta) takes into account how much your glucose readings have changed over the last 15 minutes. If you are experiencing a steep rise or steep fall, this helps Trio counter that activity and prevent an over- or under-dose.

Let's look at how Trio accounts for an increasing trend and a decreasing trend in glucose:

Next, Trio combines all of the dosage components that it has calculated into one full bolus recommendation.

Full Bolus Calculation¶

Trio starts your bolus recommendation at the full bolus amount, then adjusts it in the next step. Before it can adjust, it needs to know what the full bolus needed is. To do this, it takes all the previous calculations and combines them.

Let's look at the combination used in the image to see what the full bolus recommendation is:

Now that Trio has the full bolus determined, Trio reduces this based on the settings you've put in place.

Limiting Factors Adjustment¶

Trio will reduce your bolus amount by the Recommended Bolus Percentage you've set.

Let's look at how Trio will adjust Bill's bolus based on the default setting of 50%:

But, wait! Trio can't administer 2.33 units because he's using an Omnipod pump. Trio addresses this in the final step.

Final Bolus Calculation¶

Now that Trio has the final recommended bolus determined, it must ensure it provides the pump with a bolus command that it can execute. Meaning, a bolus amount that the pump can give.

This is pretty simple. Trio will round up or down the bolus calculation. If the calculated amount is greater than 0.06, it will round up. If it is less than 0.05, it will round down. If it is exactly 0.00 or 0.05, it will not change the amount.

Congratulations! You've completed the full bolus calculation. We realize this is an extensive and lengthy process, so we encourage you to ensure your core settings are tested and accurate for the Trio algorithm and your algorithm settings are set appropriately so that you do not need to constantly second guess these determinations.
