Remote Control

Remote Control Overview¶

Trio can accept remote commands from Nightscout or from LoopFollow. There are a variety of options, but the final control of whether remote commands will be enacted rests with the Trio user. They can enable or disable remote control.

The most powerful arrangement, for Trio 0.5.x (or newer), is to configure the LoopFollow app to use the Trio Remote Control (TRC) setting.

The limited use of remote control with Nightscout, i.e., entry of Carb Correction and Temporary Targets when Careportal is authenticated, continues to be supported with Trio.

Additional remote capabilities are offered for Trio using the LoopFollow app with these versions:

• Trio 0.5.x (or newer)
• LoopFollow version 2.4.0 (or newer)

Trio Remote Control¶

Default: OFF

Remote control must be enabled on the Trio phone or no remote information is accepted by the Trio phone.

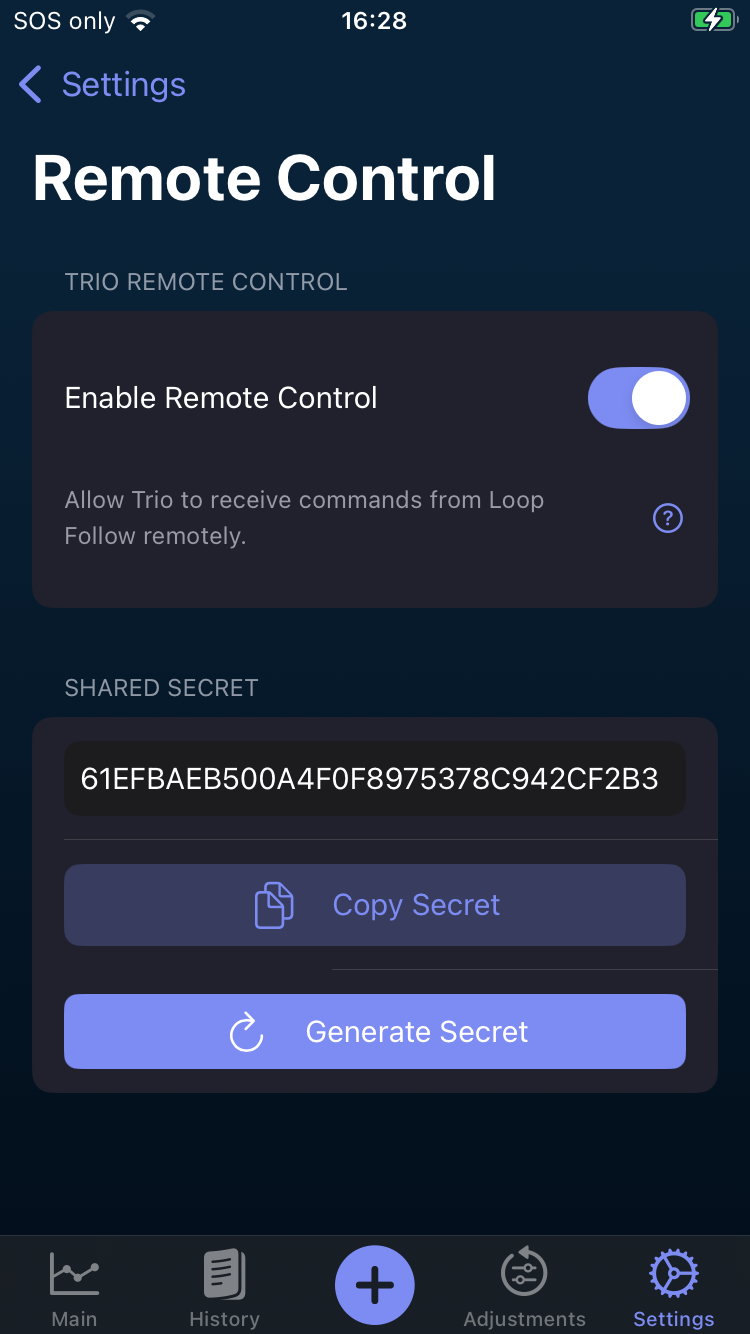

You can search for this screen in Trio settings or go through the sequence: Trio, Settings, Features, Remote Control.

Once Remote Control is enabled, a Shared Secret is available. This is only used if you want to Configure LoopFollow Trio Remote Control.

When Remote Control is enabled on the Trio app and the LoopFollow phone is properly configured, you can add carbs, send boluses, set or cancel overrides or temporary targets from the LoopFollow phone to the Trio phone via Apple push notifications.

The SHARED SECRET should be copied from the Trio phone and added to the Shared Secret row of the LoopFollow Remote Settings screen as part of the configuration for using LoopFollow.

LoopFollow Overview¶

Experienced LoopFollow users should still read this section - it touches on important configuration requirements for remote control.

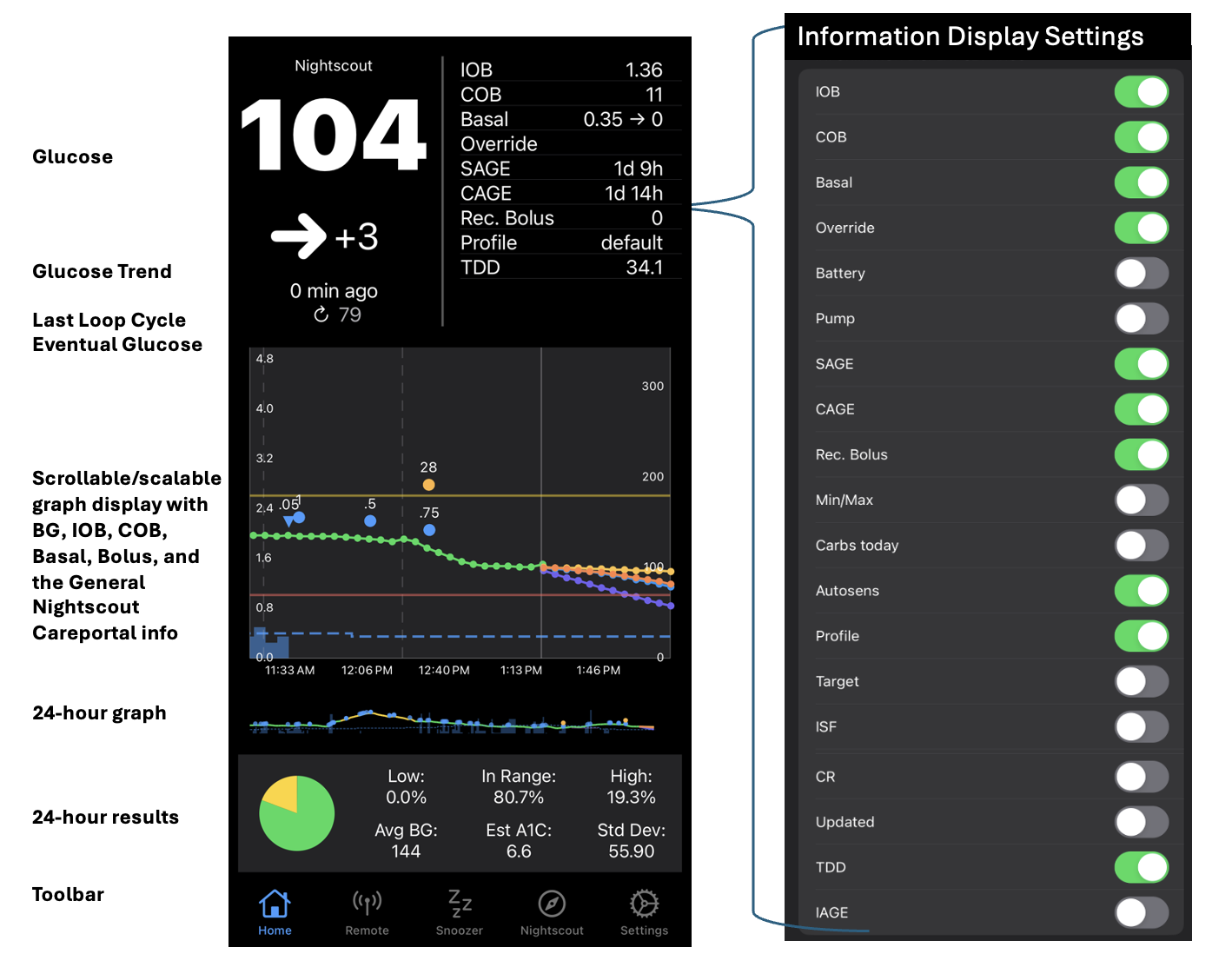

The graphic below shows the LoopFollow features on the main screen of the app.

LoopFollow Settings¶

You tap on the settings icon at the bottom right of the toolbar to configure LoopFollow. The setting screen is shown in the graphic below.

LoopFollow Data Source¶

You provide LoopFollow with information about the person you are following. At least one of these must be entered:

• Nightscout URL
• Dexcom Share credentials

Add Nightscout¶

The Nightscout URL is required to enable display of the Information Table. It is recommended that you secure you Nightscout site so a token is required to view it. The type of token depends on the type of remote control desired. The table below indicates the minimum token access for each type of remote control available with Trio. When you enter your credentials, LoopFollow tries to reach the site and then provides the status.

The graphic below shows the display when you tap on the Nightscout Settings row.

To simplify setup, you can copy your Nightscout URL (including the token) from the Admin Tools in Nightscout. When pasted into LoopFollow URL row, the app will automatically extract and fill in both the URL and token.

Add Dexcom¶

The graphic below shows the display when you tap on the Dexcom Settings row.

The Dexcom Share credentials are optional, but can be useful when the Nightscout URL is unavailable.

LoopFollow Remote Setting Type¶

The Remote Settings row in the LoopFollow Settings screen is used to select the type of remote access you wish to use.

• Nightscout option
  • Remote control with LoopFollow is limited to starting and canceling Temp Targets
  • Available with Trio 0.2.x
• Trio Remote Control option
  • Remote control with LoopFollow includes adding remote carbs, enacting remote bolus, and starting and canceling Temp Targets and Overrides
  • Requires Trio 0.5.x (or newer) and LoopFollow 2.4.x (or newer)
  • Continue with Configure LoopFollow Trio Remote Control to finish the configuration process

LoopFollow Remote Options¶

The LoopFollow app provides amazing display and alarm capabilities, whether remote control is enabled or not.

It can be used with the Trio or the Loop app with the Nightscout option for starting and stopping temp targets (Trio) or overrides (Loop).

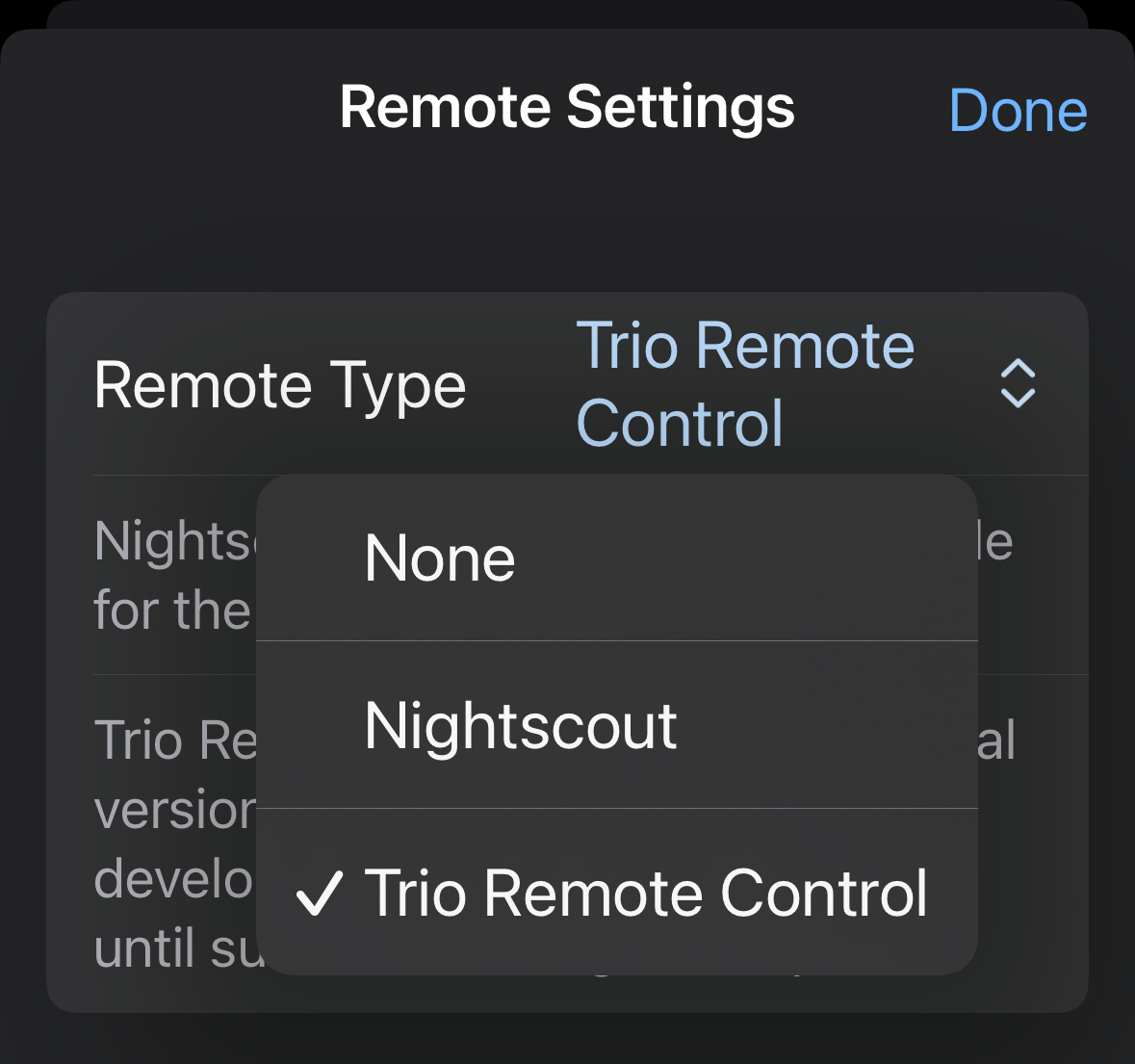

The graphic below shows the top portion of the Remote Settings screen when None, Nightscout or Trio Remote Control is selected. The lower portion of the screen is found in the Guardrails section.

Use LoopFollow Nightscout Remote Control¶

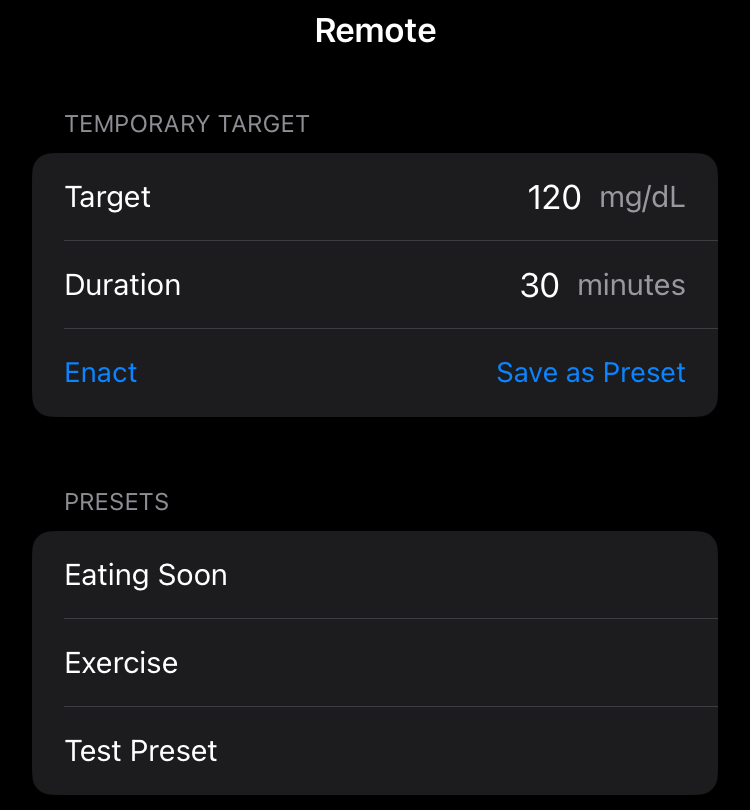

If you select Nightscout as the Remote Control Type for LoopFollow, this enables Temporary Targets to be set and disabled from LoopFollow.

This is the only remote option that works for Trio 0.2.x when using LoopFollow.

Configure LoopFollow Trio Remote Control¶

This is supported for Trio 0.5.x (or newer) when using LoopFollow 2.4.0 (or newer).

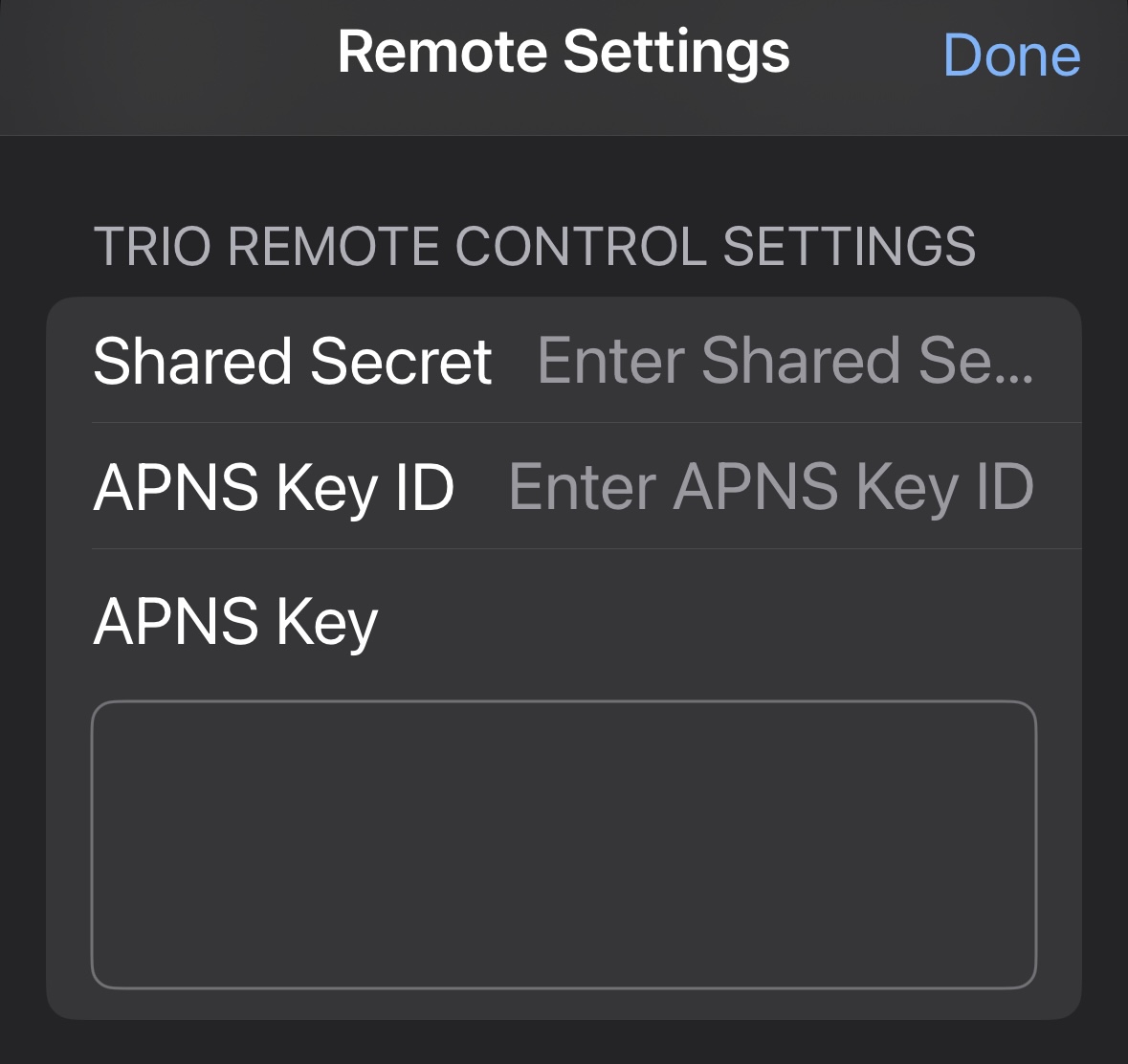

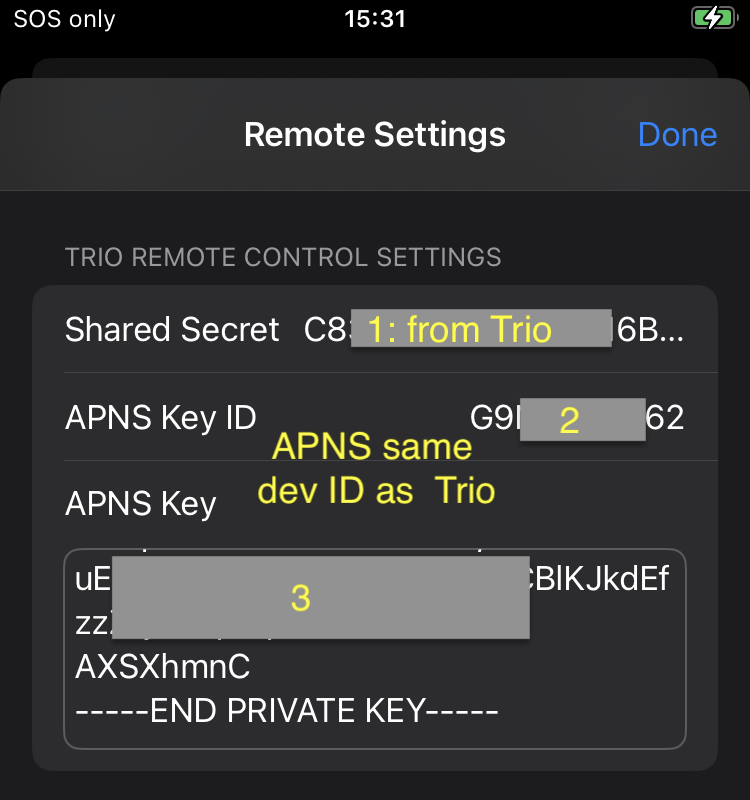

When you select Trio Remote Control as the Remote Type in the LoopFollow app, you must fill in the (1) Shared Secret, (2) APNS Key ID and (3) APNS Key.

Default Remote Settings	Configured Remote Settings

User¶

The person using the LoopFollow app should enter the name they want to show up as having entered this entry.

• At the current time, this is not used by LoopFollow for Trio
• It does show up as a notification on a Loop phone when LoopFollow is used with the Loop app
  • This feature might be added to LoopFollow for Trio at a later time

Shared Secret¶

This is the unique shared secret that can be generated or entered into the Trio app in the Remote Control screen. The shared secret in Trio and LoopFollow must match to provide the ability to remotely send commands to this Trio app.

Please use a secure secret - the automatically generated secret is recommended.

APNS Key ID¶

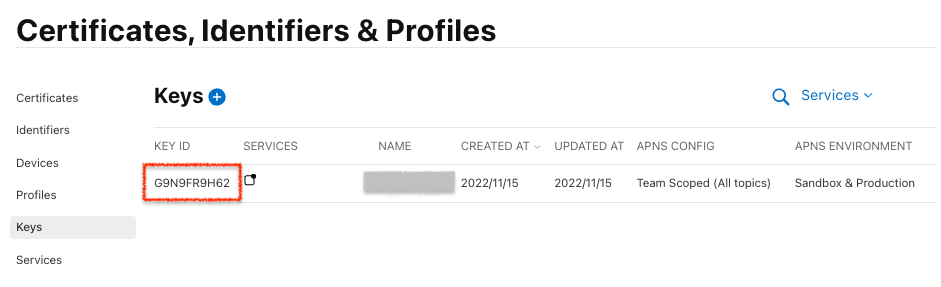

If you previously configured remote control with the Loop app, you already have an Apple Push Notification System (APNS) Key ID and Key. These were added to the config vars in your Nightscout site. See Existing APNS. The value of the LOOP_APNS_KEY_ID goes here. Be sure to read the Configure for OpenAPS section about steps to make Nightscout and LoopFollow work with Trio.

If you have never created an APNS (or have lost the credentials), follow the directions in New APNS and copy the APNS Key ID into LoopFollow and save the value in your Secrets Reference file.

When creating the APNS, you must be logged in as a developer. The developer ID for the APNS must be the same as the one used for creating your Trio app or remote control will not work.

APNS Key¶

If you previously configured remote control with the Loop app, you already have an Apple Push Notification System (APNS) Key ID and Key. These were added to the config vars in your Nightscout site. See Existing APNS. The value of the LOOP_APNS_KEY goes here.

If you have never created an APNS (or have lost the credentials), follow the directions in New APNS and copy the APNS Key into LoopFollow and save the value in your Secrets Reference file.

Guardrails¶

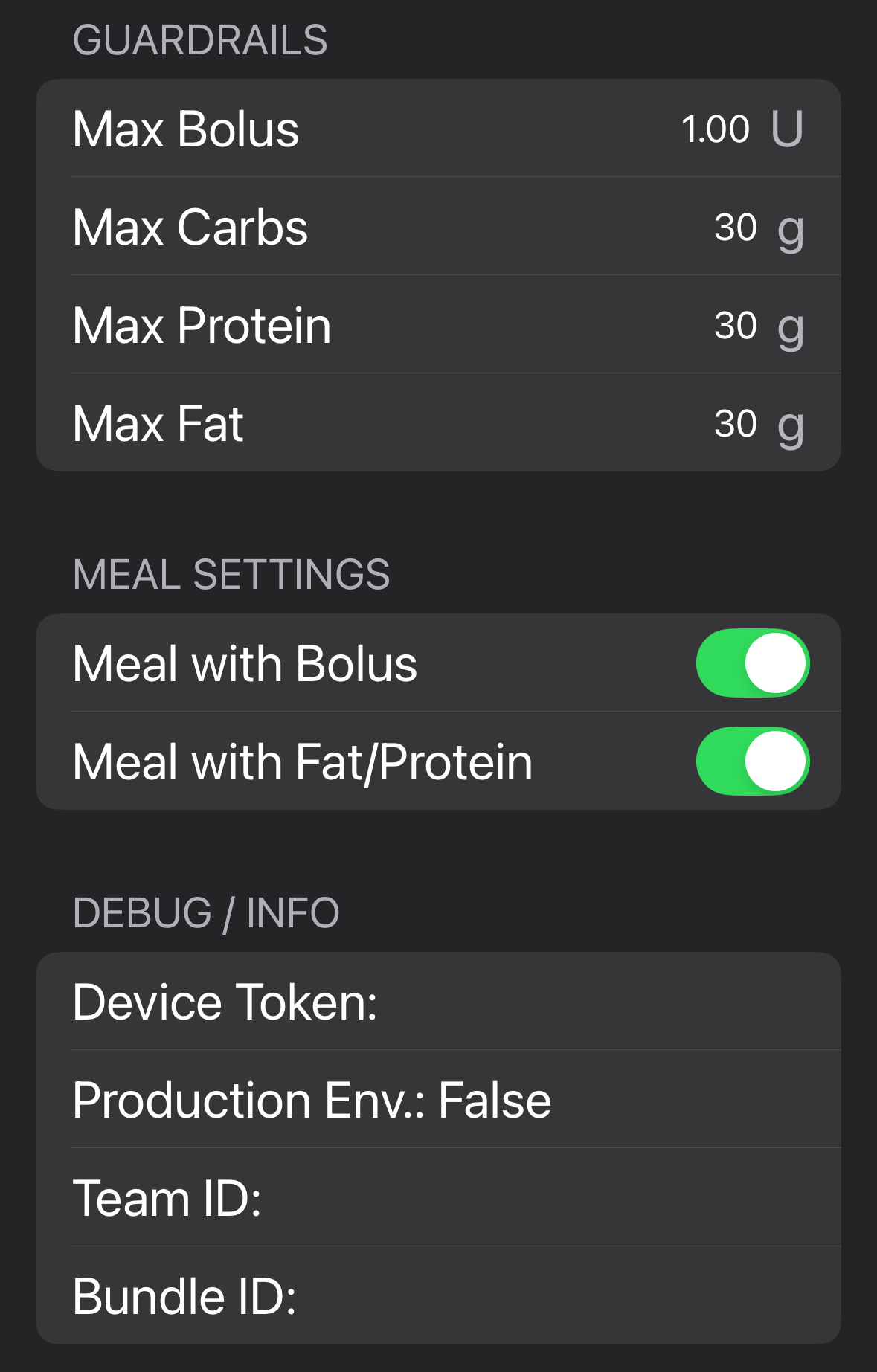

The maximum allowed entries for Bolus, Carbs, Protein, and Fat are configured in the guardrails section shown in the graphic below. This example is one in which the Shared Secret and APNS values have not yet been added.

Meal Settings¶

The user can decide to enable or disable two features independently.

• Meal with Bolus
  • When enabled, a bolus command can be sent at the same time as the meal entry
• Meal with Fat/Protein
  • When enabled, the user is presented with a Protein and Fat row in addition to the Carbs and Bolus Amount rows

Refer to the graphic in the Guardrails section.

Debug / Info¶

This section indicates if Trio has uploaded required information to Nightscout.

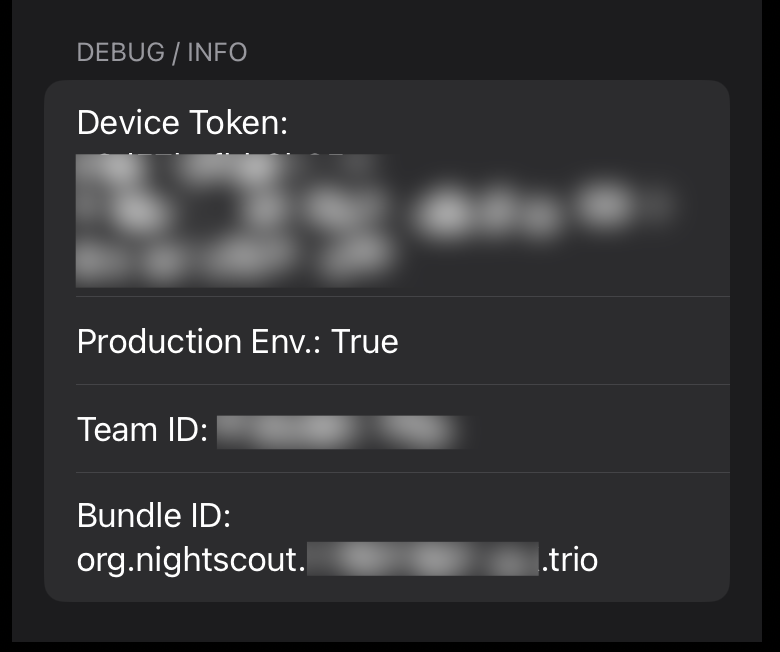

The graphic below shows a properly configured LoopFollow when the Trio app was built using the Browser Build method.

If you have empty rows in the Debug / Info screen, the most likely problem is the default profile is not coming from Trio. See Update Profile. If you took those steps and still have missing rows, return to Configure LoopFollow Trio Remote Control and try again.

Use LoopFollow Trio Remote Control¶

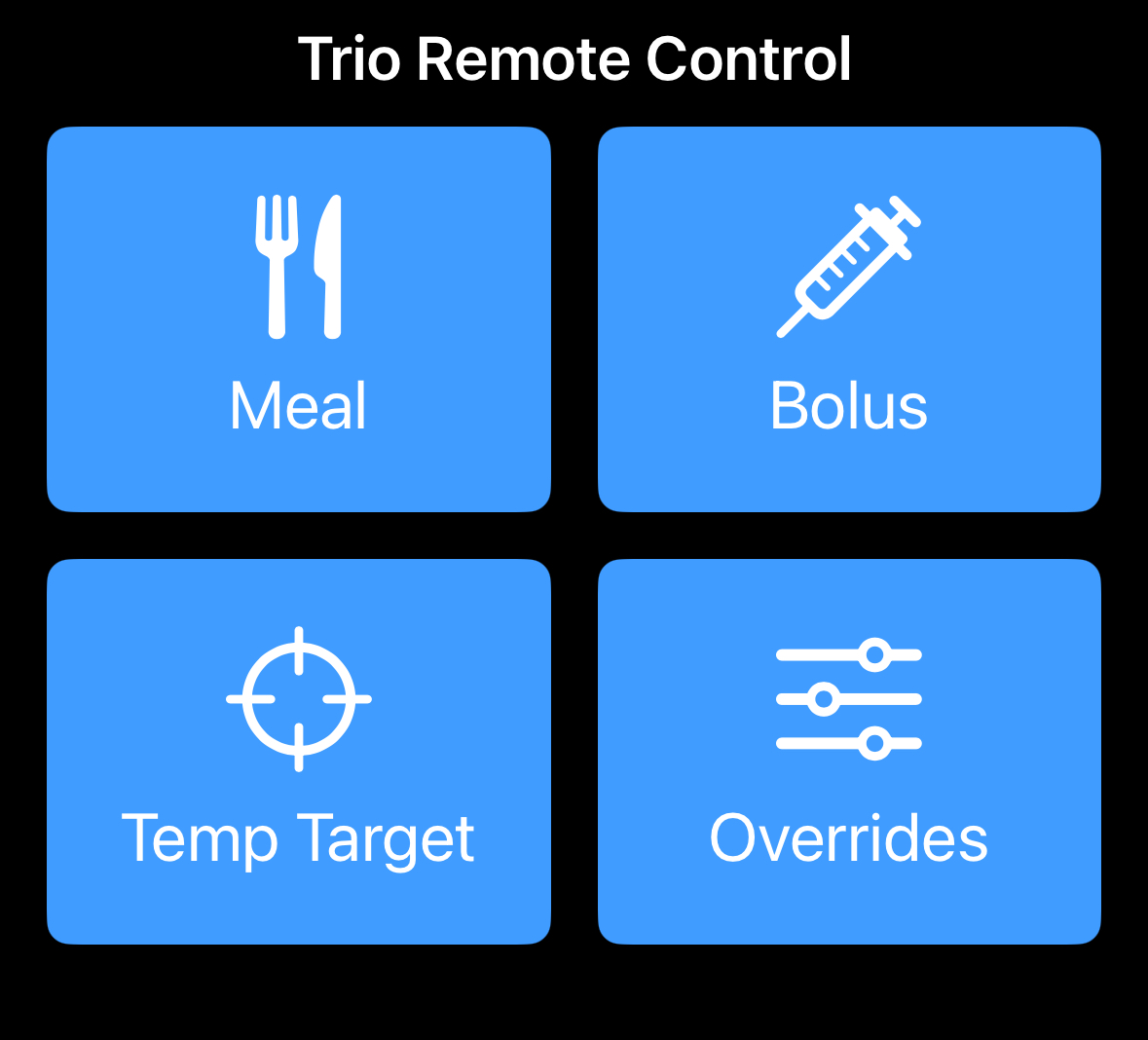

Once the LoopFollow phone is configured, and while the Trio phone is handy, test sending Remote Commands. It is good to also have a browser open with the Nightscout URL displayed.

Remember to give the system time to update.

The sequence is LoopFollow to Apple Push Notifications to Trio, which uploads to Nightscout and then is displayed in the LoopFollow main screen.

Remote Meal¶

More info coming soon!

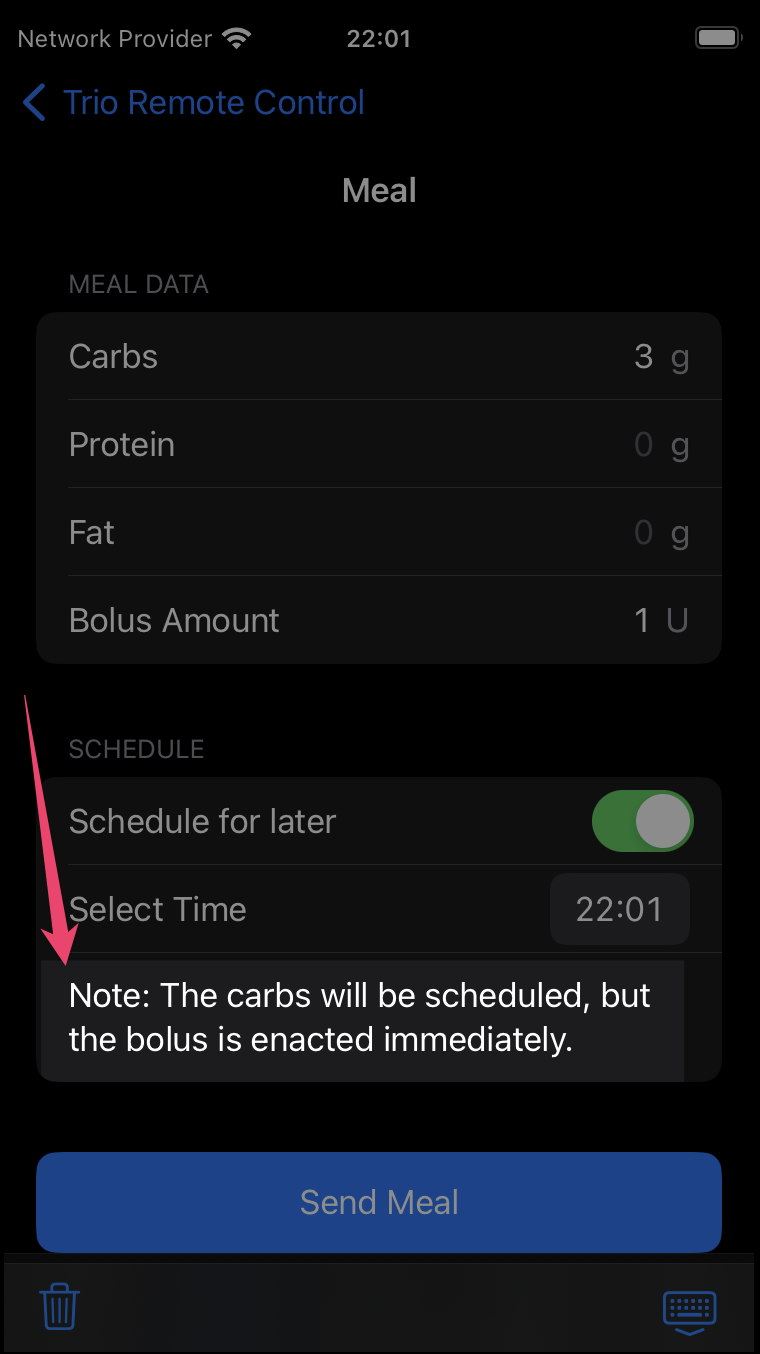

When entering meals and choosing to schedule the meal, any bolus included in the meal is enacted immediately. Only the carb entry is entered according to the schedule.

Remote Bolus¶

More info coming soon!

Temp Target¶

More info coming soon!

Overrides¶

More info coming soon!

Apple Push Notifications System (APNS)¶

Existing APNS¶

If you previously configured remote control with the Loop app, you already have an Apple Push Notification System (APNS) Key ID and Key. These were added to the config vars in your Nightscout site.

If you do not have existing APNS Keys, skip ahead to New APNS.

When you configured APNS for the Loop app and saved information in your Nightscout config vars, they used the names in the table below. The same APNS Key ID and Key are what you need to add to the LoopFollow app in Configure LoopFollow Trio Remote Control.

New APNS¶

When using Trio, you do not need to add the config vars to Nightscout that are required for Loop remote control. If you already have them, it doesn't hurt anything, but you do not need to add them to use remote control with Trio.

When using Trio Remote Control with LoopFollow, the Apple Push Notification System is used directly. The Shared Secret provides additional security.

If you do not have APNS credentials, you need to create a key and grant it access to the  Apple Push Notification Service (APNS).

Note - these directions are copied from LoopDocs so it suggests you name the key Nightscout. It is probably best to stick with that naming for APNS keys.

1. To get started, go to the Keys section under Apple Developer's Certificates, Identifiers & Profiles and login with the Apple ID associated with your developer team that you used to build the Trio app.

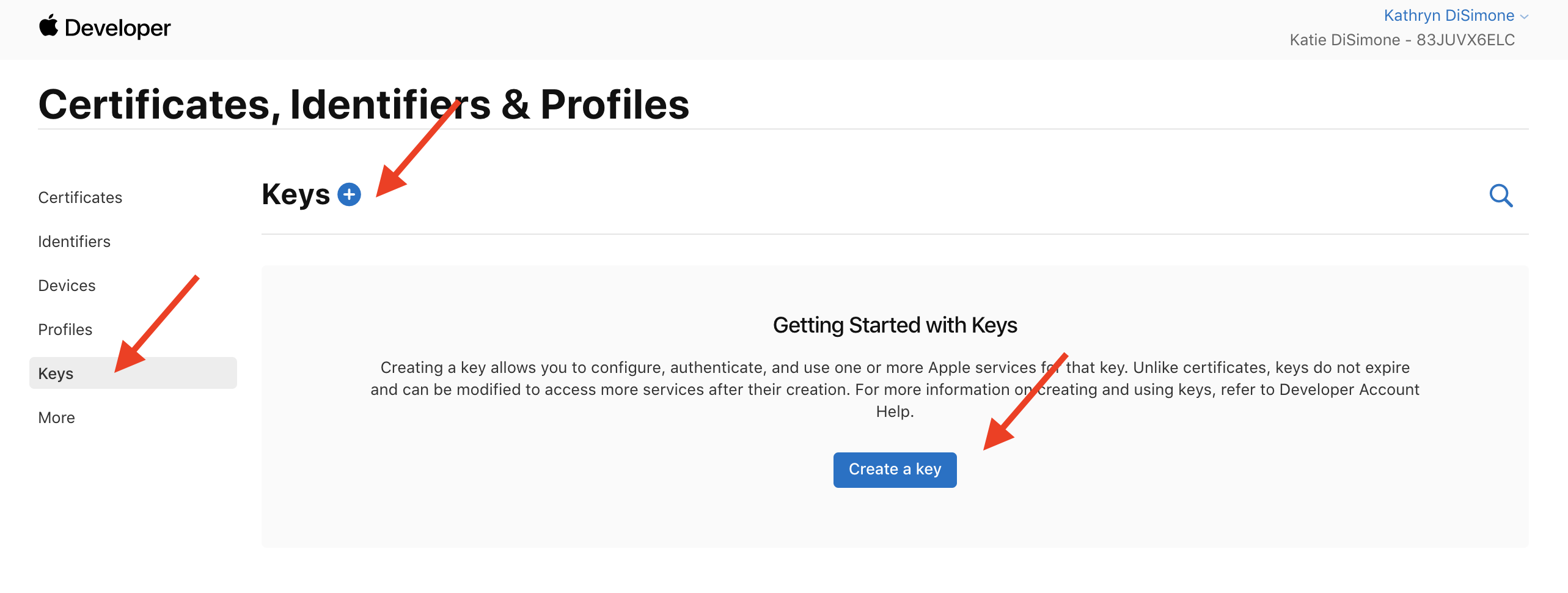

2. If not already open in your browser (compare with the below screenshot),
   • Click on Keys (located in the left-hand column).
   • Either click on the blue Create a new key button OR the plus button () to add a new key.



3. In the form that appears, do the following:
   • Click the checkbox for enabling Apple Push Notifications service (APNs)
   • Enter a name for the key such as Nightscout (you can name it however you want, just make sure you know what the key is for by the name you choose).
   • Then click the Configure button to the right of the name
   • Choose Sandbox & Production and then Save
   • Tap on the Continue button, upper right

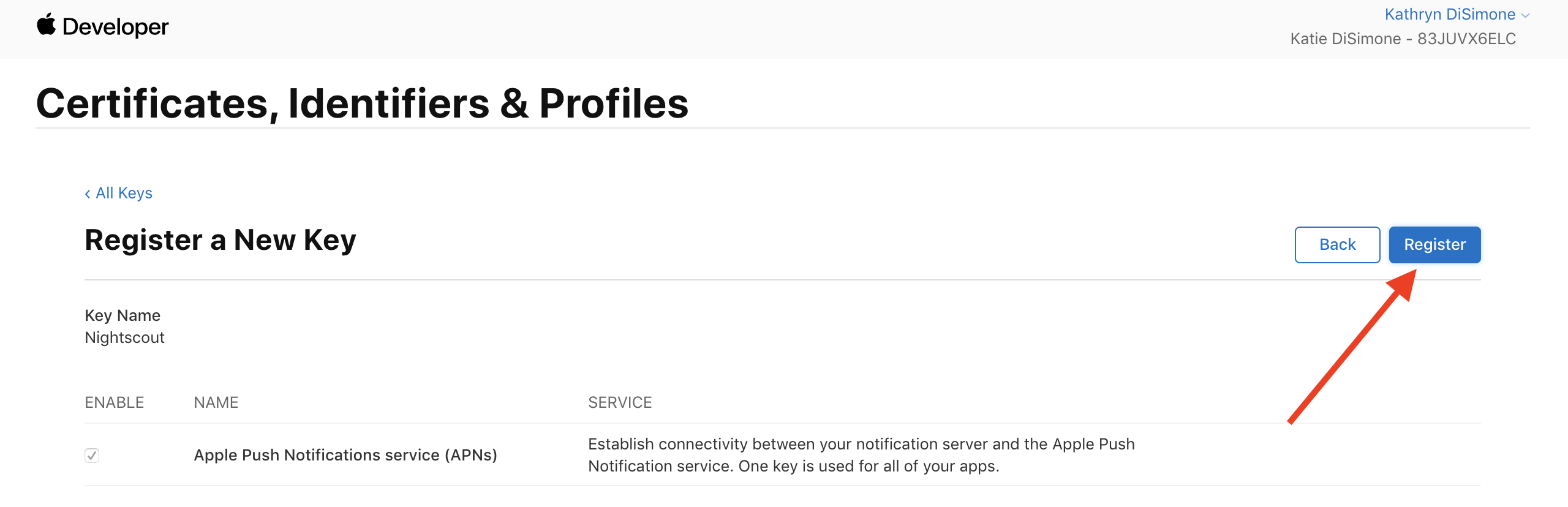

4. In the screen that follows, click the blue Register button.

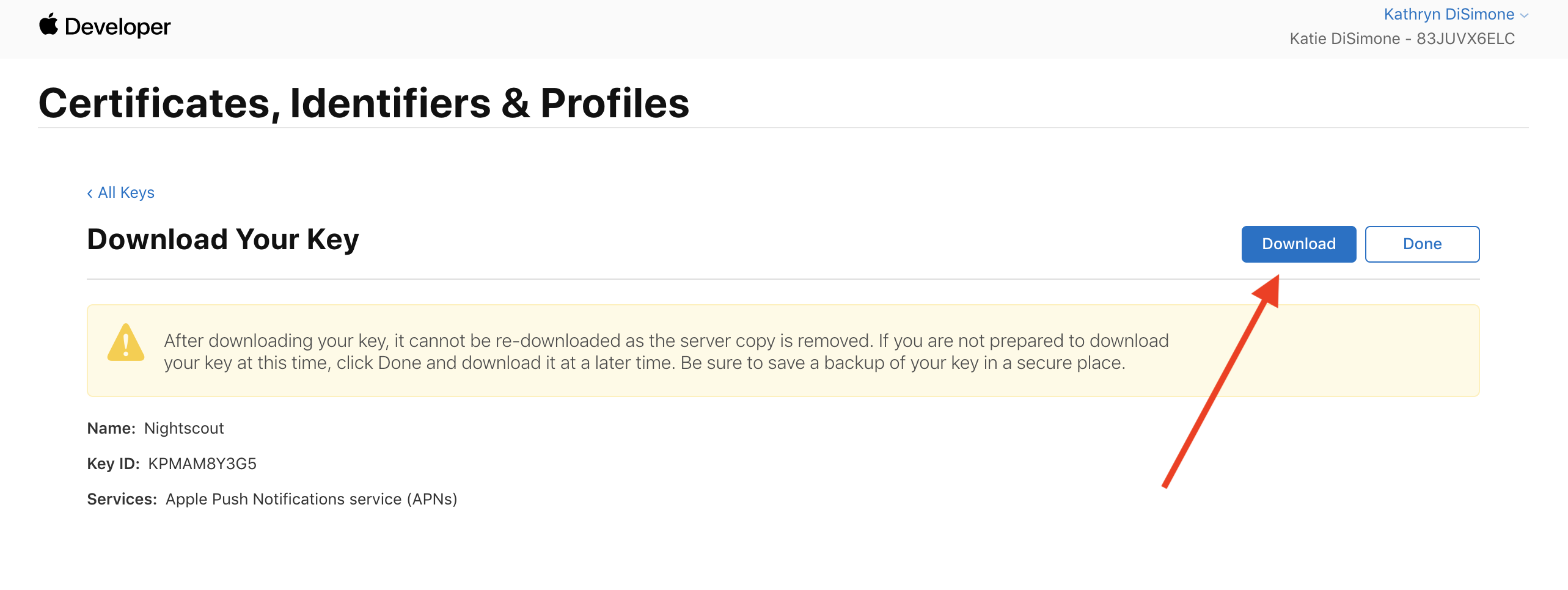

5. In the screen that follows, click the blue Download button.
   This step will download a file with a name that starts with AuthKey and ends with .p8.



6. Find your AuthKey downloaded file in your downloads folder. It's a good idea to store this file where you can find it again if you need it. The next task is to rename the file so you can open it. Highlight the filename and choose rename, then add ".txt" after ".p8". In other words, modify AuthKey_AAAAAAAAAA.p8 to AuthKey_AAAAAAAAAA.p8.txt and click on Use .txt when questioned.

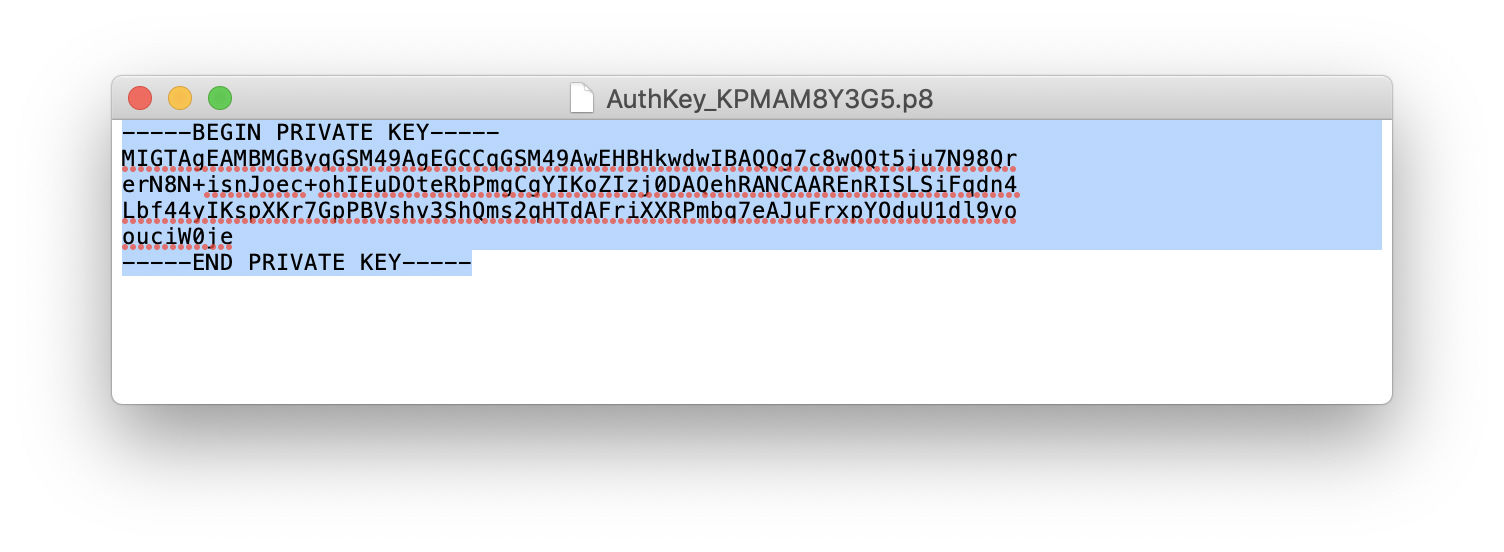

7. Double-click to open the AuthKey_AAAAAAAAAA.p8.txt file. It will look similar to the screenshot below. You need to highlight ALL OF THE CONTENTS of that file and copy it and then paste it both into your Secrets Reference file and into the row for LoopFollow APNS Key. Yes, allllll of the contents.
   So, the easiest way is to:

   • Click inside that file
   • Highlight all the text, and then
   • Copy all the text to the clipboard (Cf. screenshot below).
     • On a Mac, press Cmd+A to select all, then press Cmd+C to copy the selection.
     • On a PC, press Ctrl+A to select all, then press Ctrl+C to copy the selection.



8. The APNS Key ID is the 10-character name embedded in the filename: AuthKey_AAAAAAAAAA.p8.txt. You can also see it if you return to Apple Developer's Certificates, Identifiers & Profiles as highlighted in this graphic. You copy that APNS Key ID and then paste it both into your Secrets Reference file and into the row for LoopFollow APNS Key ID



Troubleshooting¶

This section covers known troubleshooting issues:

• Nightscout not displaying Trio data: Configure for OpenAPS
• Was able to select Trio Remote Control in LoopFollow but it is no longer working: Stop Nightscout access from the Loop app
• Cannot select Trio Remote Control in LoopFollow: Update Profile

Configure for OpenAPS¶

The Nightscout version must be 15.0.2 (or newer) to properly display the OpenAPS pill with Trio 0.5.x (or newer). Check your revision: Nightscout URL, Menu, scroll to bottom and examine the About section.

If you transitioned from the Loop app, you must make some modifications to Nightscout before you will be successful viewing your Trio data in your Nightscout site.

In Nightscout, you need to modify these config vars:

Remember to restart the Nightscout server (restart dynos) after updating these variables.

Stop Nightscout access from the Loop app¶

If you were previously running the Loop app:

• Remove Nightscout from Loop Services
• Add Nightscout credentials to Trio
  • You need the URL and the API_SECRET.

In addition to this step, you may need to force the profile (from Trio) to upload to Nightscout and overwrite the one stored as the default profile in Nightscout.

Update Profile¶

If you were previously running the Loop app, take the actions in the previous section and then force the profile to update.

To force a profile to update to Nightscout, go to the Trio app and toggle Allow Uploading to Nightscout off (disable) and then enable it again.

Once the user has toggled "Allow Uploading to Nightscout", LoopFollow needs to be refreshed (pull down glucose value to refresh) or re-started in order to fetch the correct information. LoopFollow will refresh eventually, but most users are impatient.

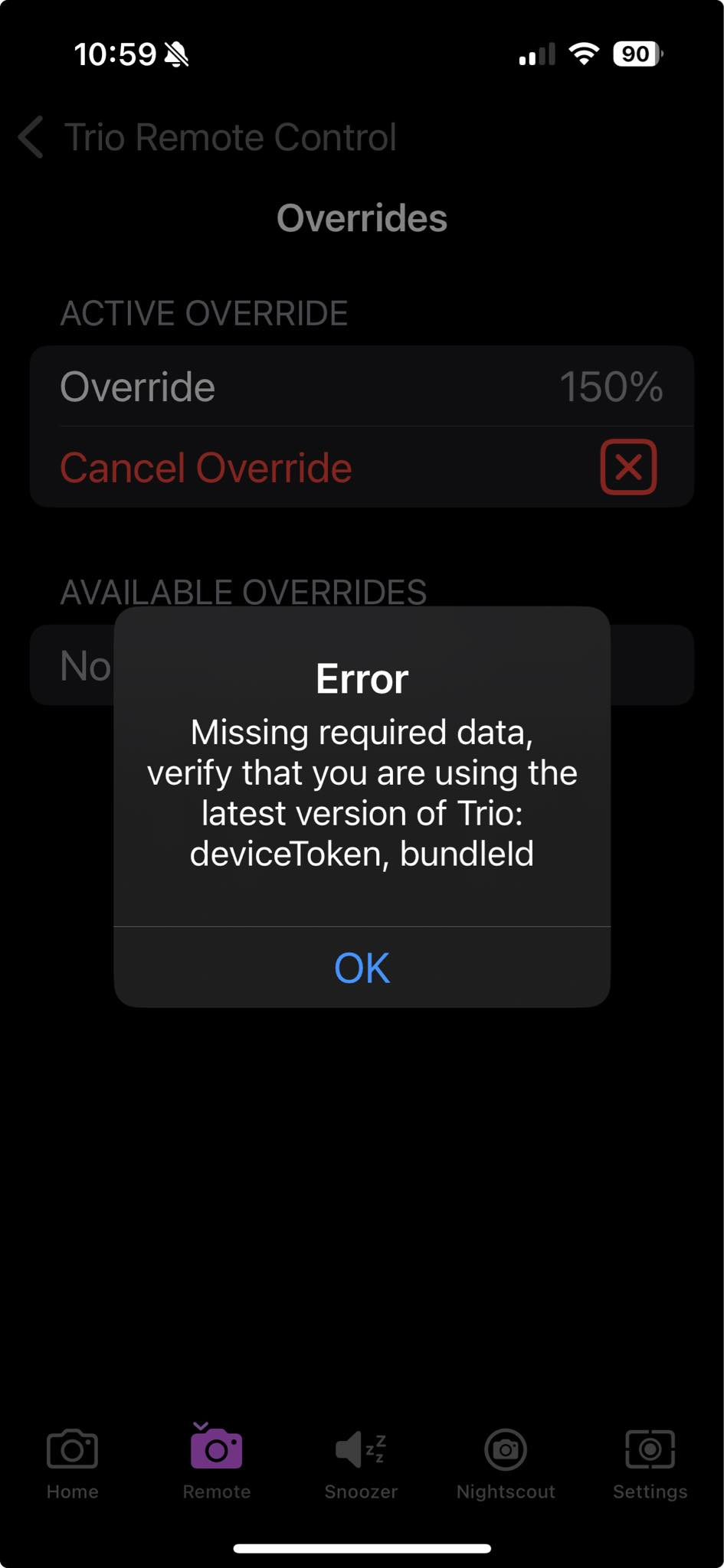

If the Debug Info in LoopFollow is missing a Device Token or a Bundle ID, as shown on the left side of the graphic, you need to make sure the Loop app is no longer uploading to Nightscout and force the profile to update.

Trio Remote Control Stops Working¶

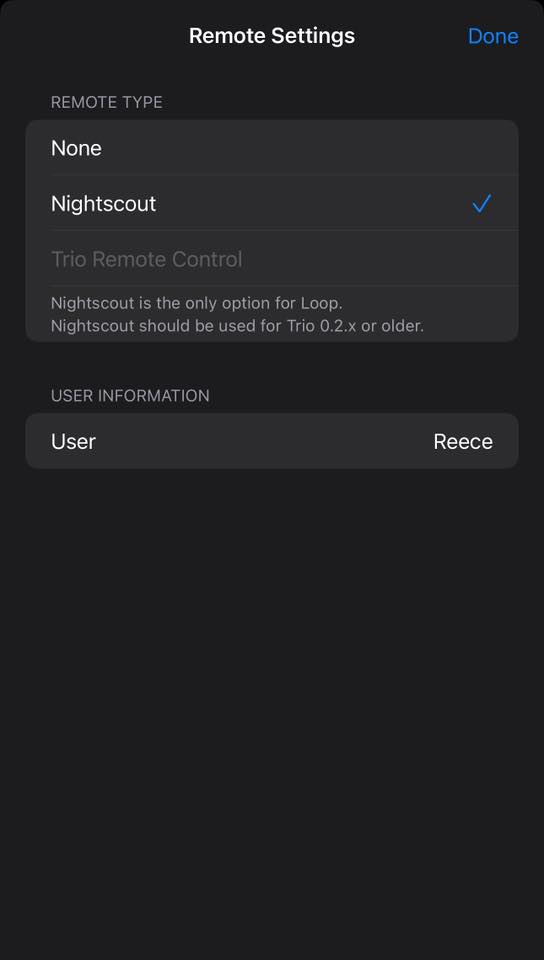

Other signatures that you need to force the update are shown in the graphics below - for both these instances, Trio Remote Control (TRC) was working with LoopFollow and then stopped working:

TRC Option Not Allowed	TRC Error

Build LoopFollow¶

This page is under construction. But here's the link:

Install LoopFollow
