Insulin Pump¶

This section allows you to choose your insulin pump. Most options are self-explanatory. For more information on compatible insulin pumps, please see the following link

Step 1: Add Pump¶

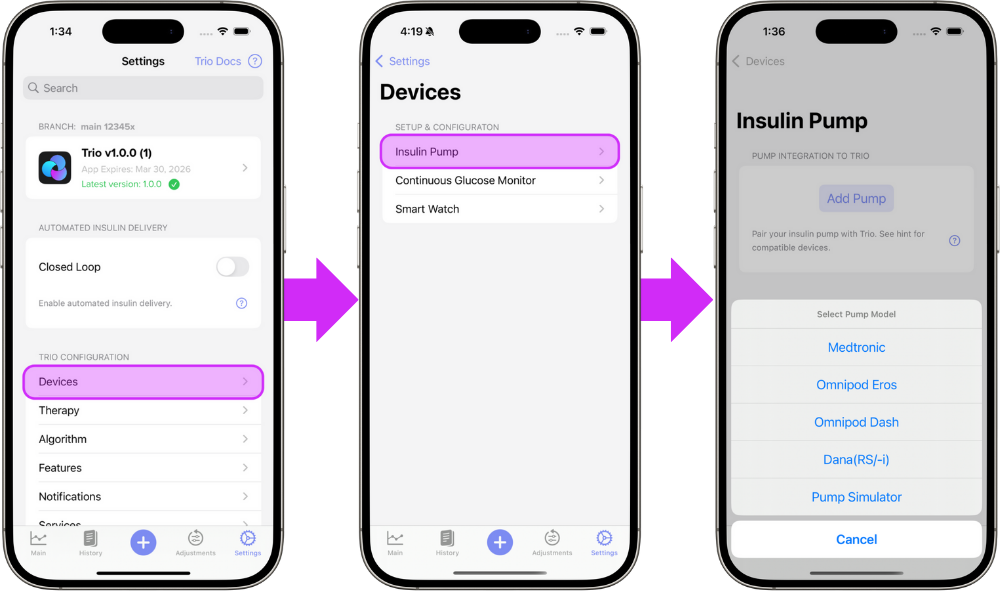

The first step in setting up your insulin pump on Trio is to tap the "Add Pump" button in the Devices Menu

Step 2: Select Your Pump¶

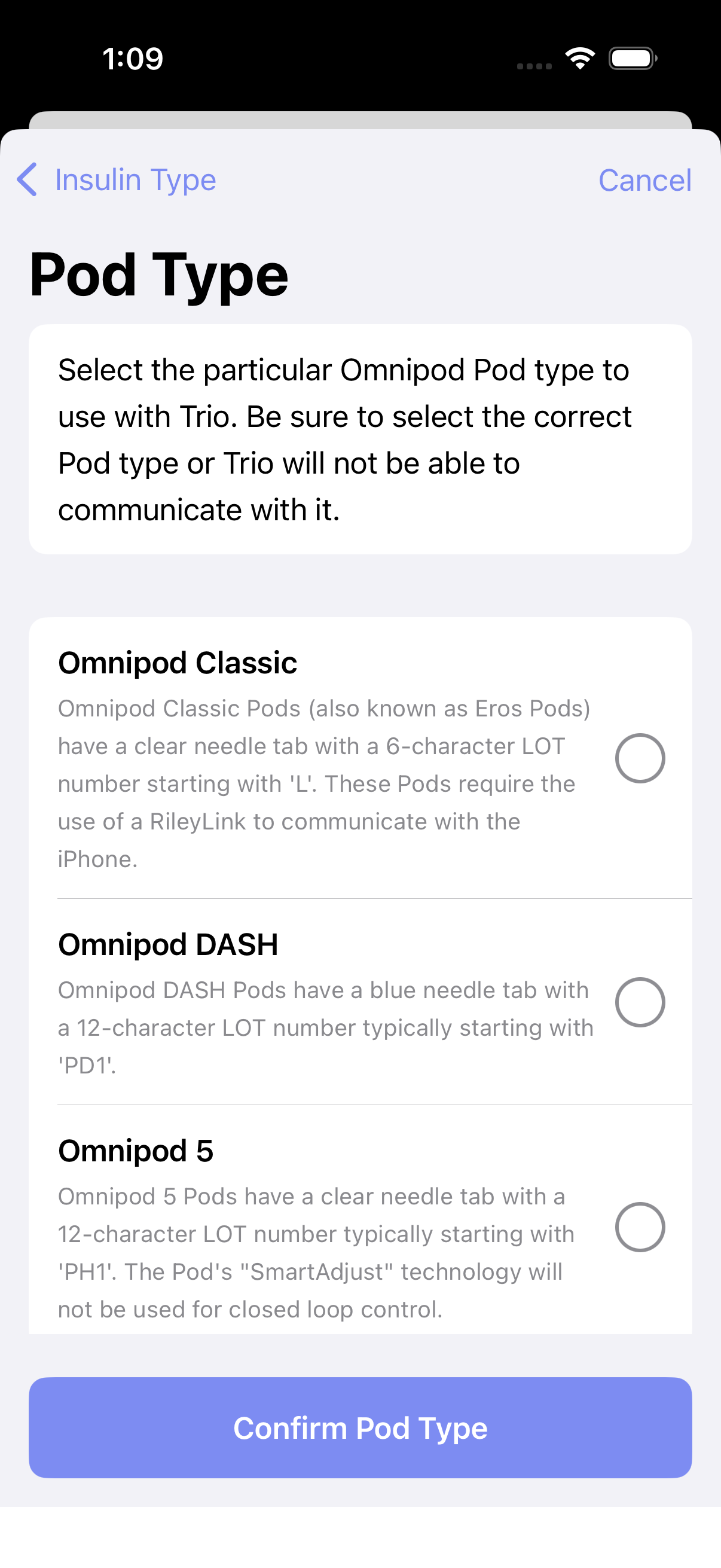

Select your pump from the in-app menu and from the options below for step-by-step instructions. The links below will guide you through the connection instructions for your specific pump.

Medtronic
Omnipod Eros
Omnipod Dash
Dana(RS/-i)
Pump Simulator

Medtronic¶

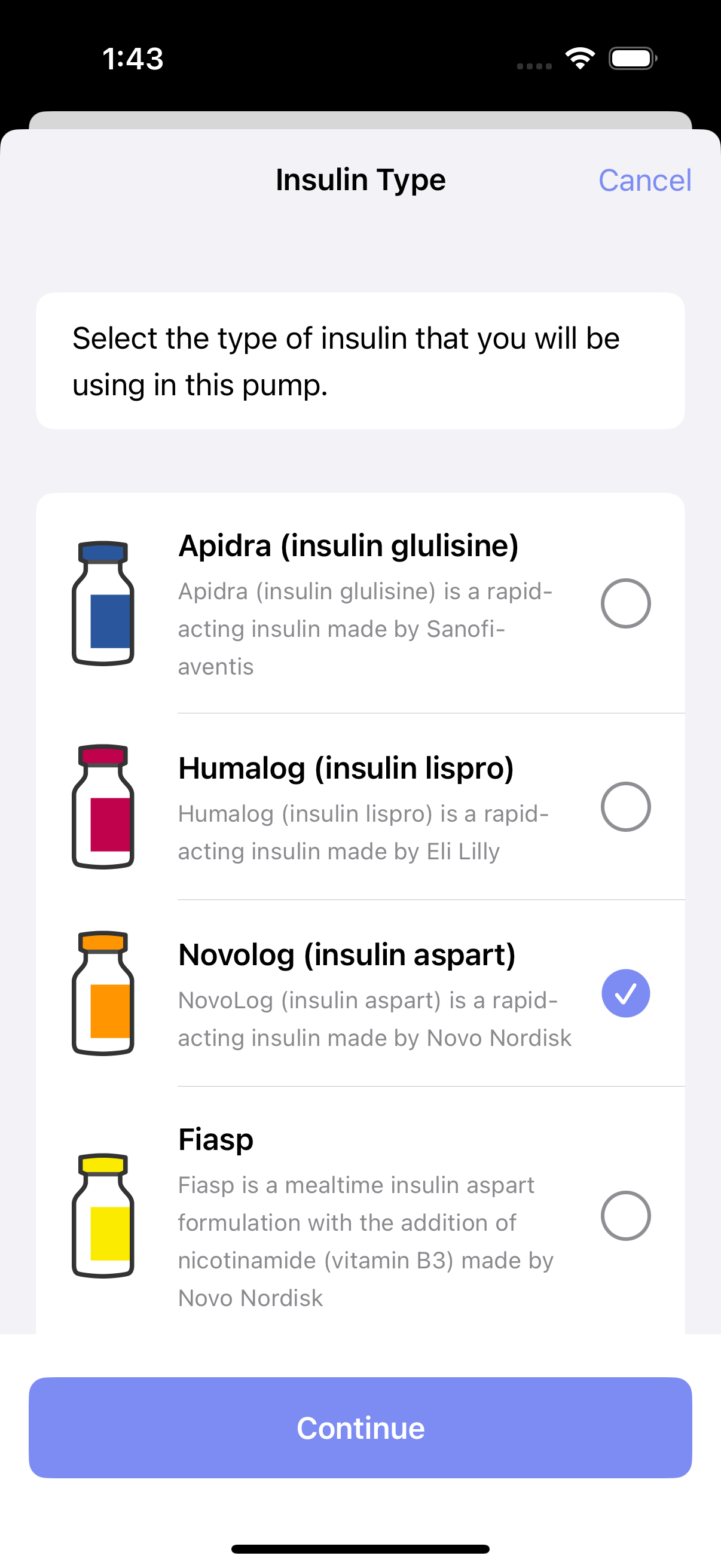

Step 3 Choose your insulin type and tap "Continue"

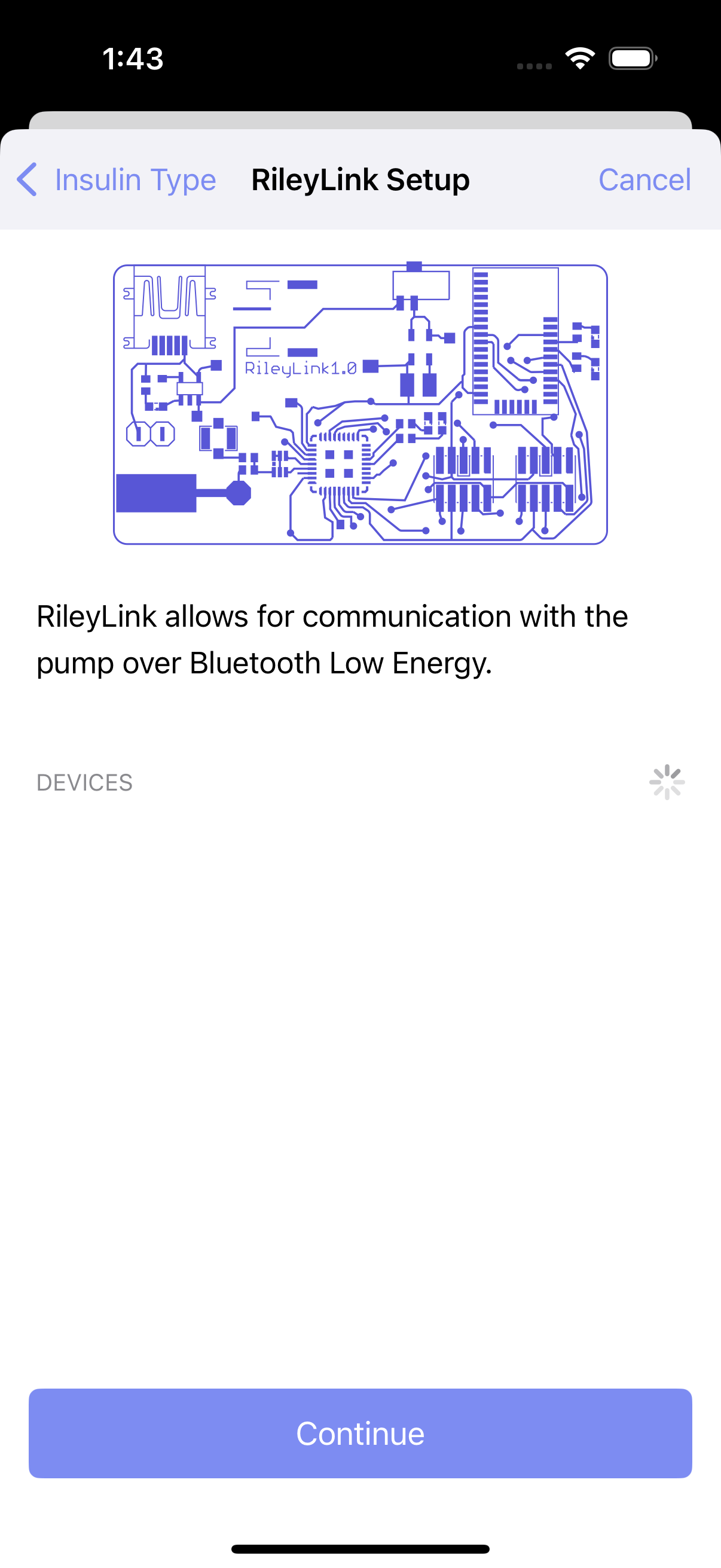

Step 4 Connect your RileyLink, OrangeLink, or EmaLink and tap "Continue"

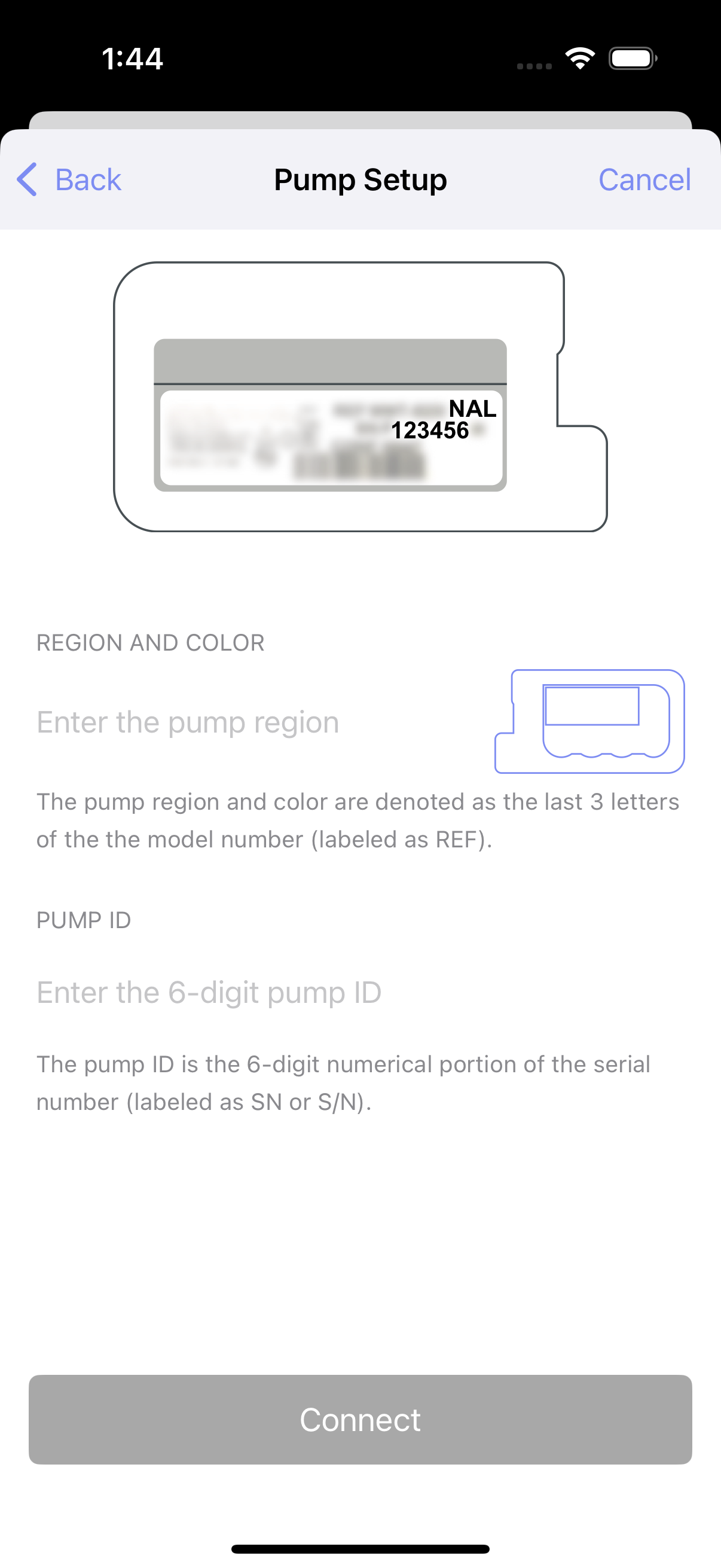

Step 5a Enter your pump region and color

Step 5b Enter your 6-digit pump ID

Then, tap the "Connect" button when it turns blue at the bottom.

Step 6 Continue to Connect CGM OR return to New User Setup

Omnipod Eros¶

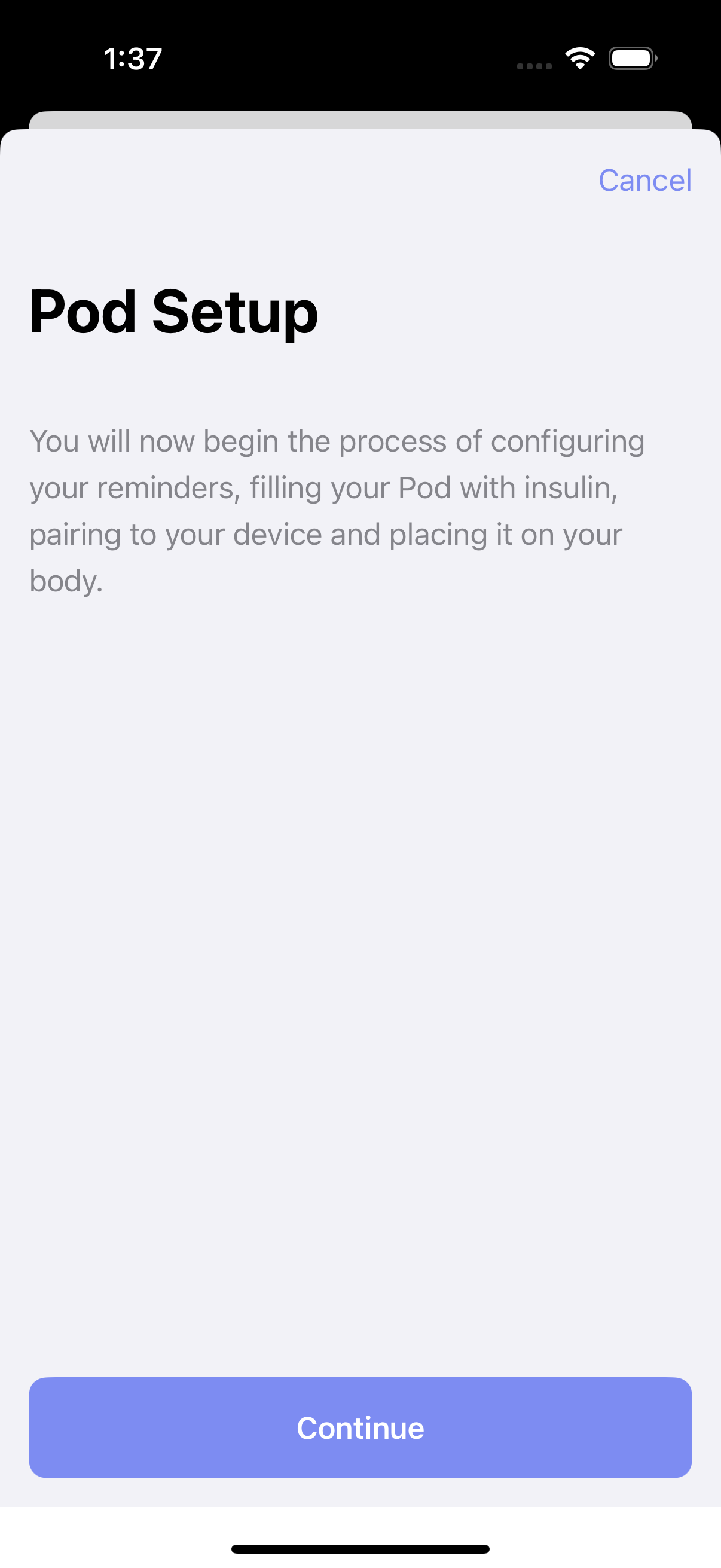

Step 3 Begin the process of configuring your Eros pod by tapping the blue "Continue" button at the bottom

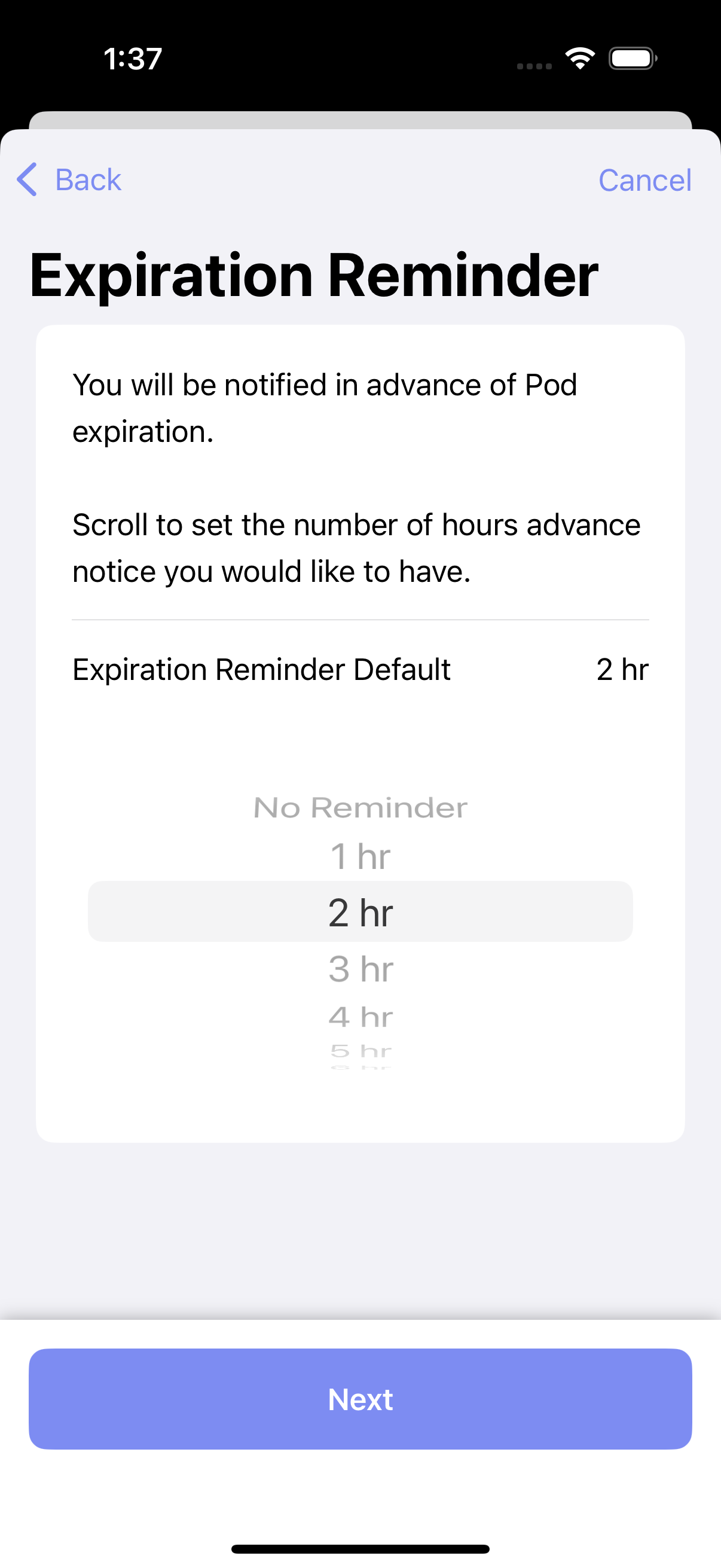

Step 4 Choose the expiration reminder that you prefer and tap "Next"

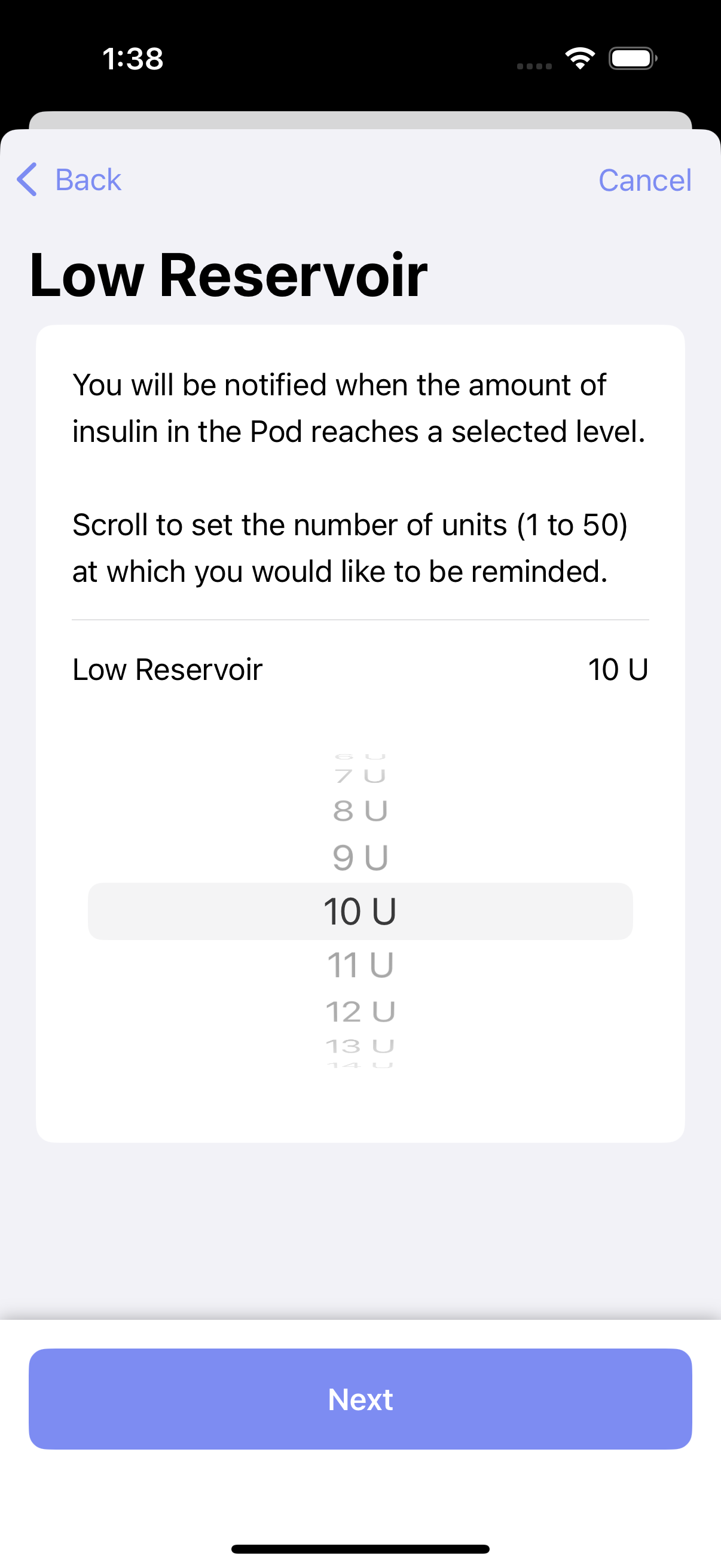

Step 5 Choose the low reservoir reminder that you prefer and tap "Next"

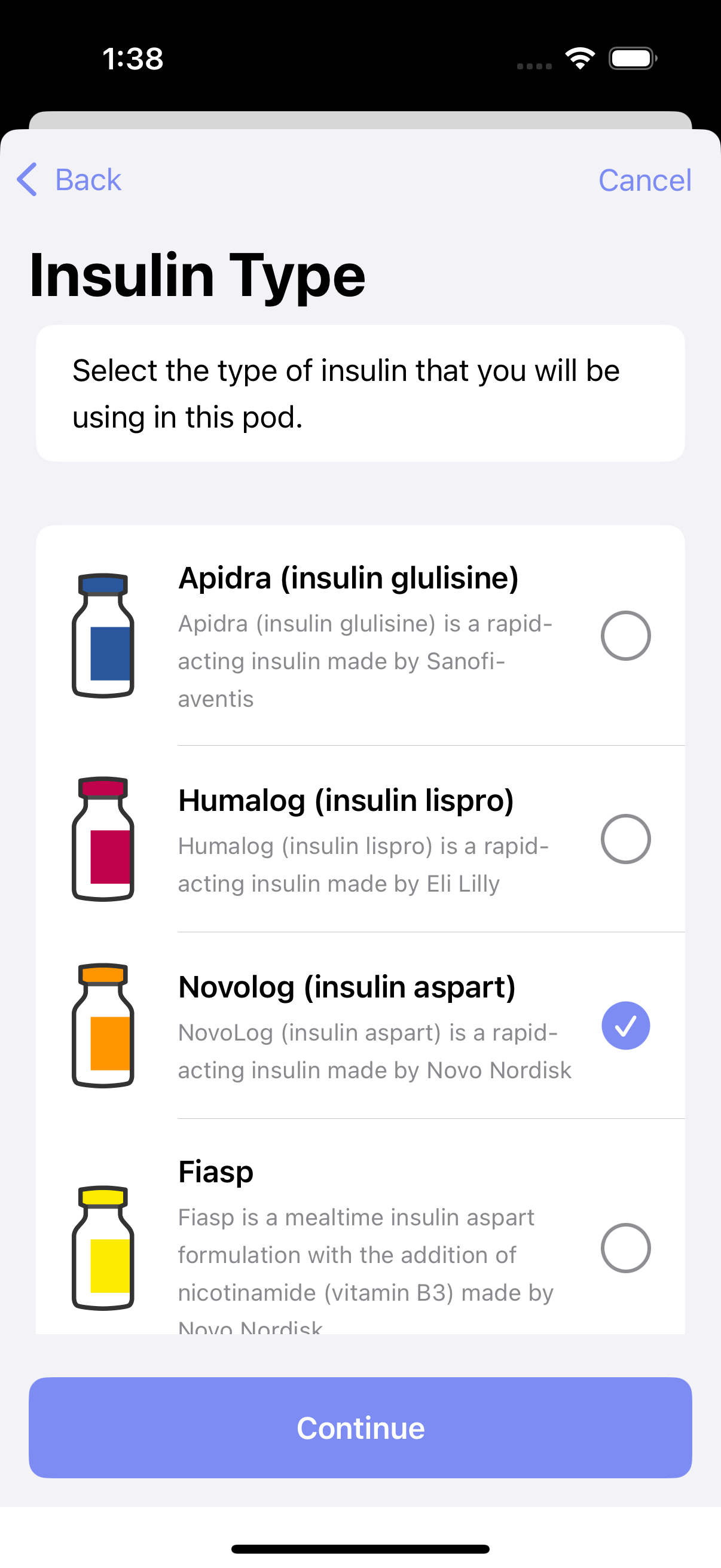

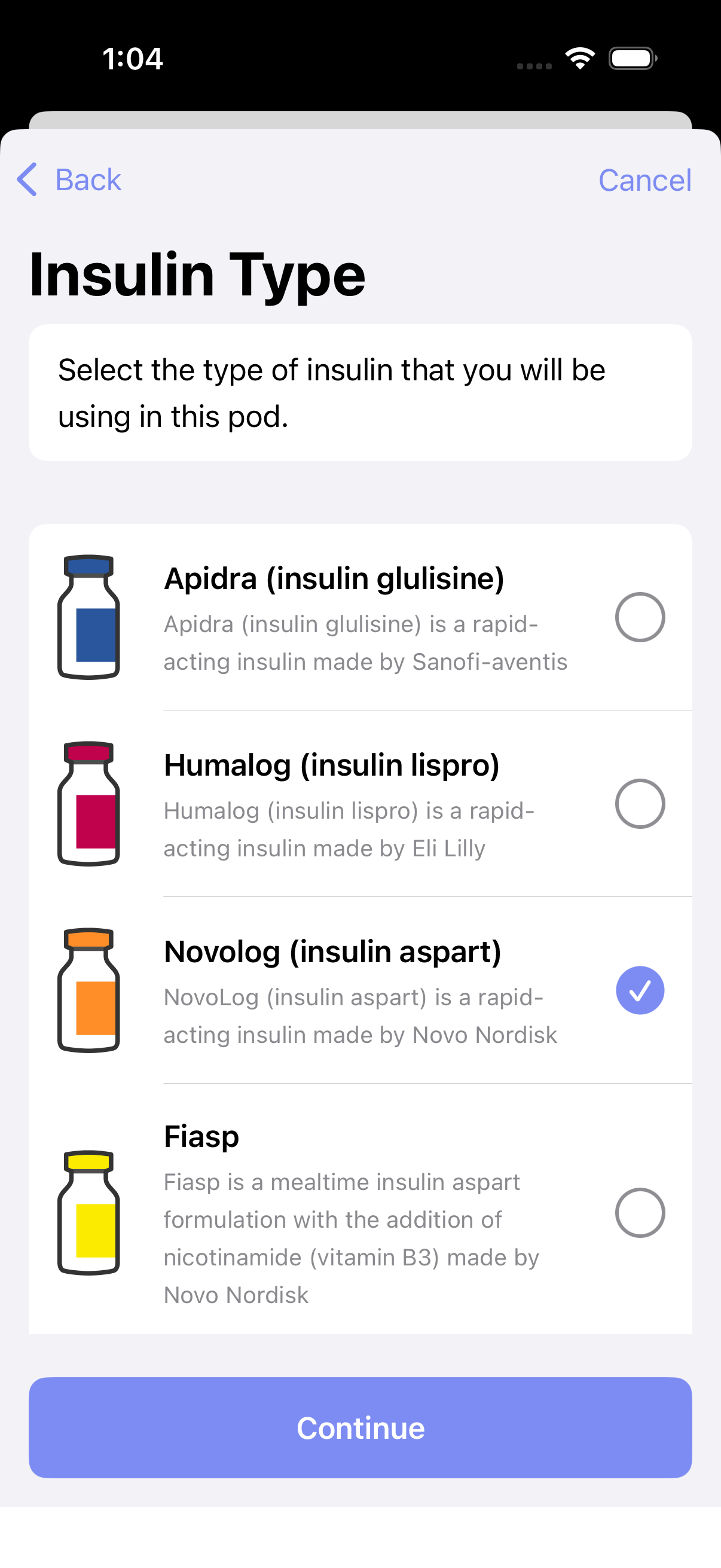

Step 6 Choose your insulin type and tap "Continue"

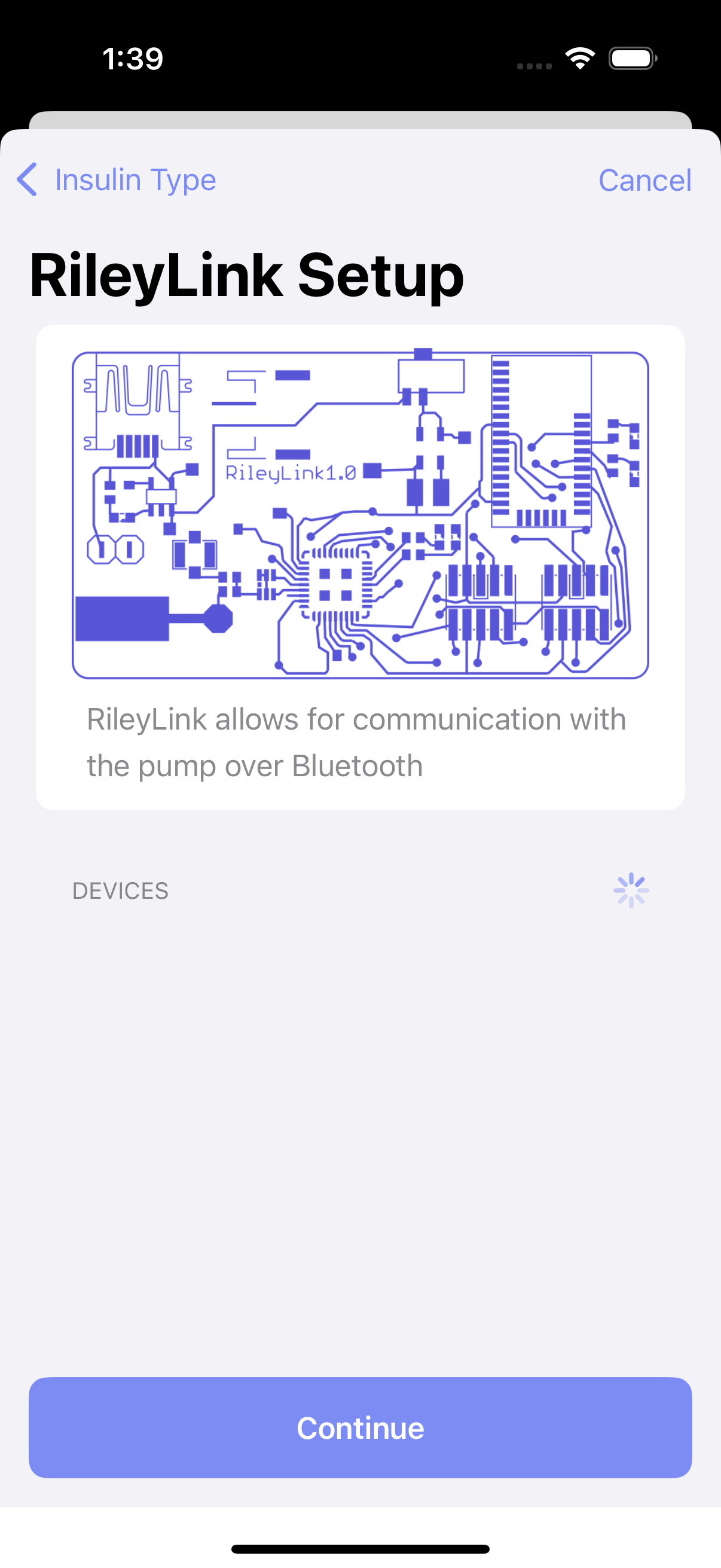

Step 7 Connect your RileyLink, OrangeLink, or EmaLink and tap "Continue"

Step 8 Continue to Connect CGM OR return to New User Setup

Omnipod Dash¶

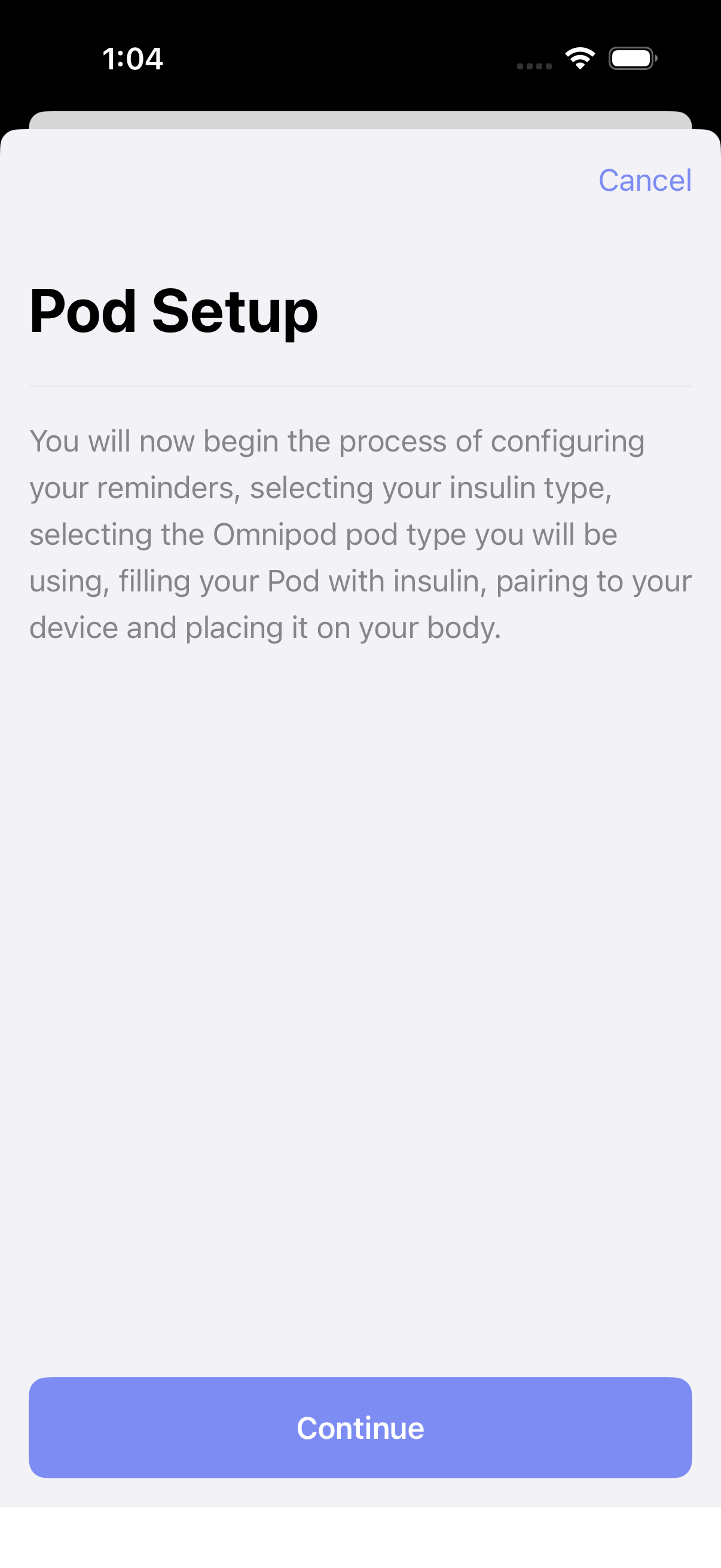

Step 3 Begin the process of configuring your Dash pod by tapping the blue "Continue" button at the bottom

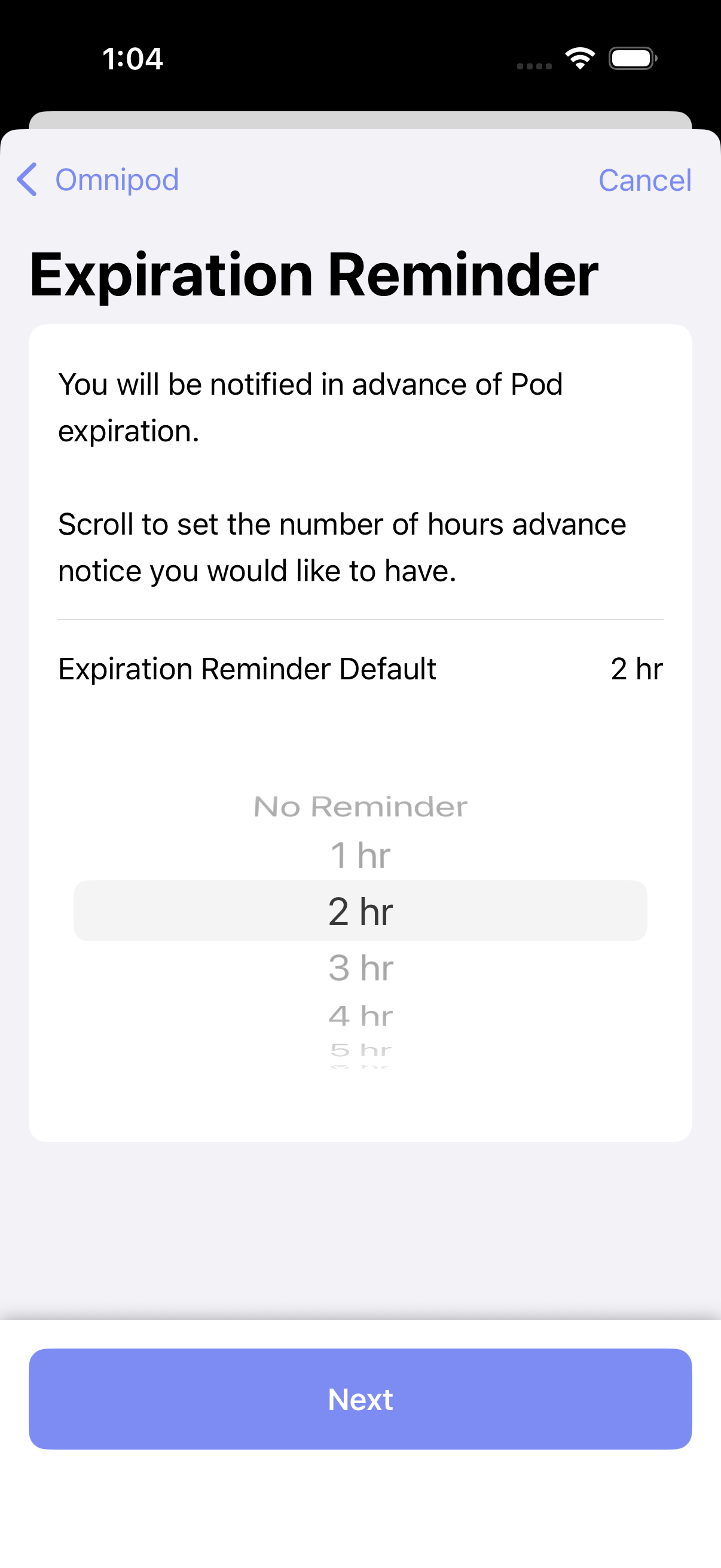

Step 4 Choose the expiration reminder that you prefer and tap "Next"

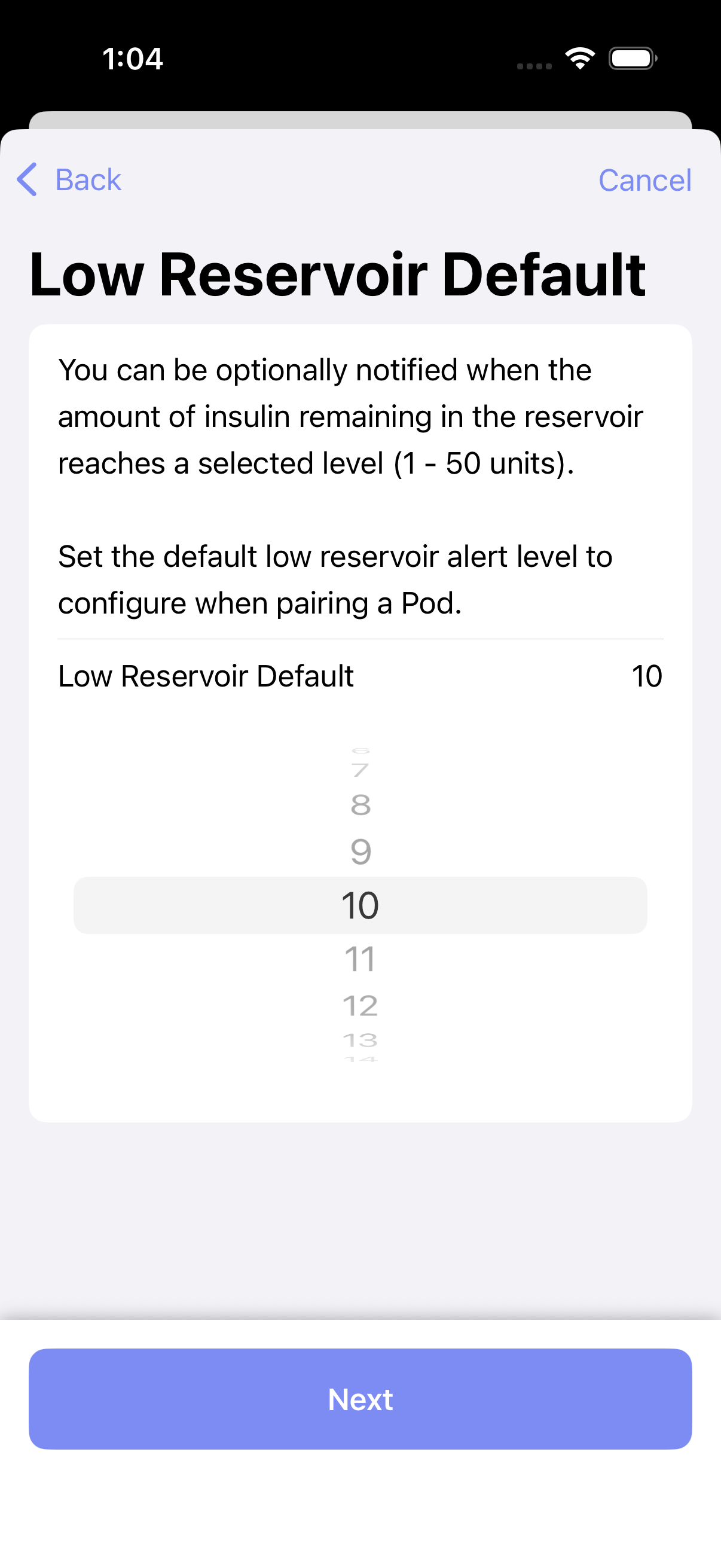

Step 5 Choose the low reservoir reminder that you prefer and tap "Next"

Step 6 Choose your insulin type and tap "Continue"

Step 7 Continue to Connect CGM OR return to New User Setup

Dana(RS/-i)¶

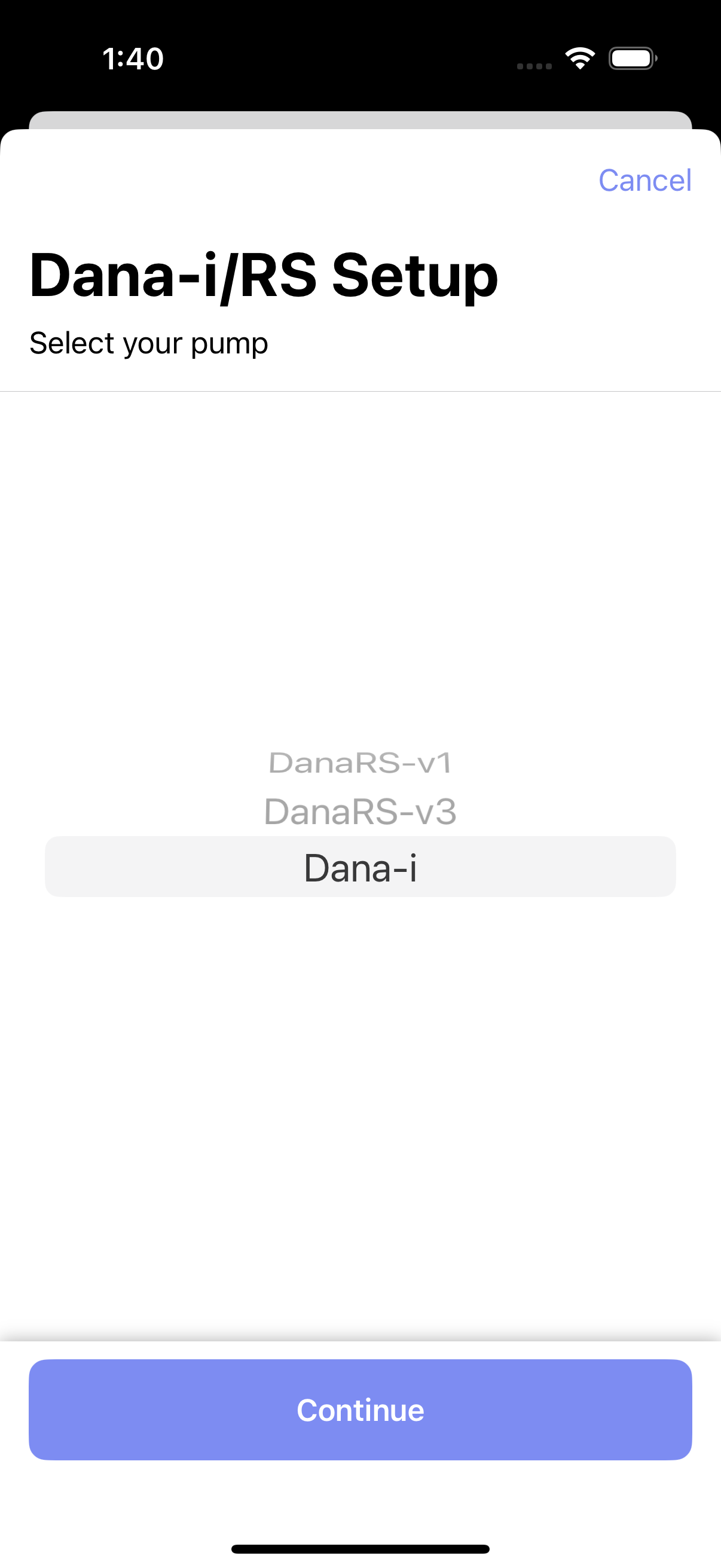

Step 3 Select your Dana pump model from the list and tap "Continue"

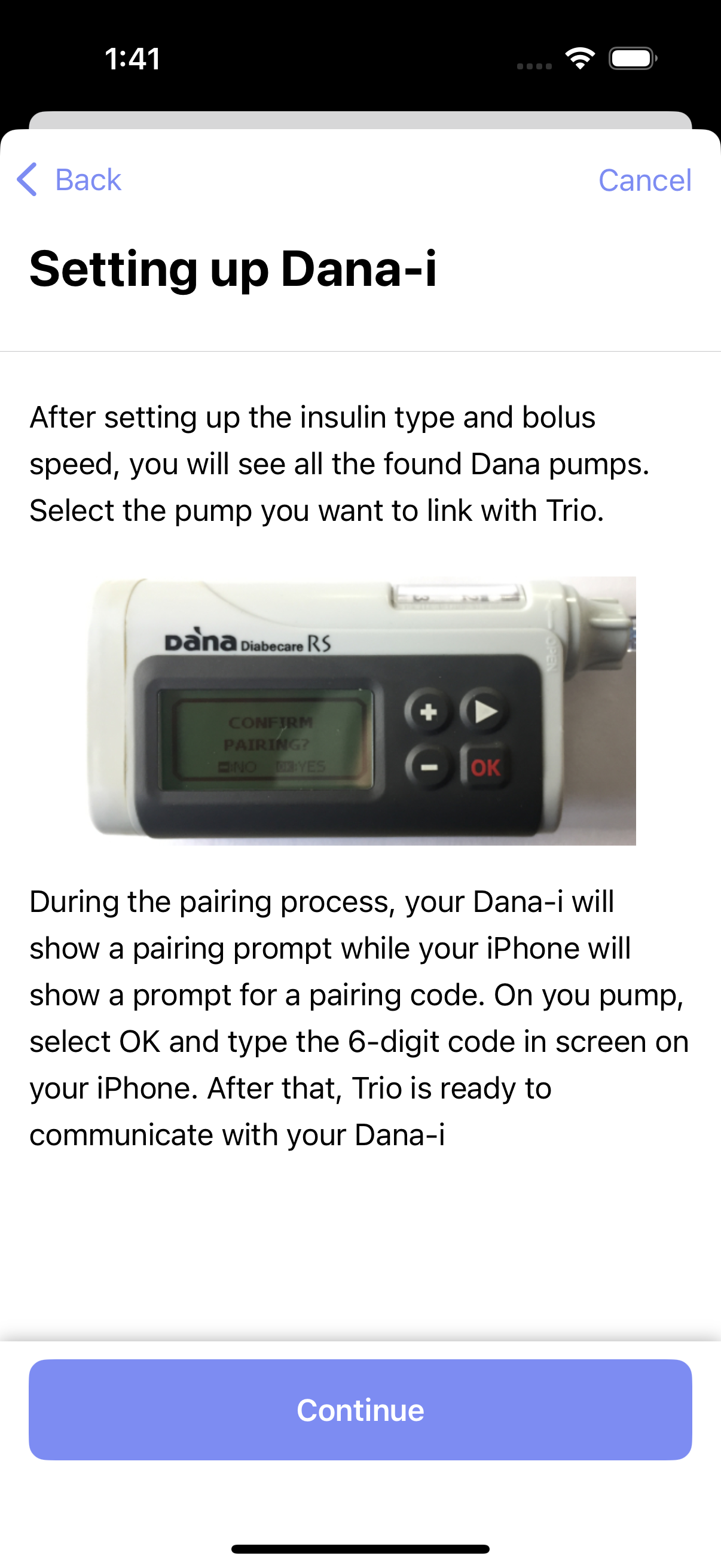

Step 4 Read the in-app information and tap "Continue" when ready to proceed

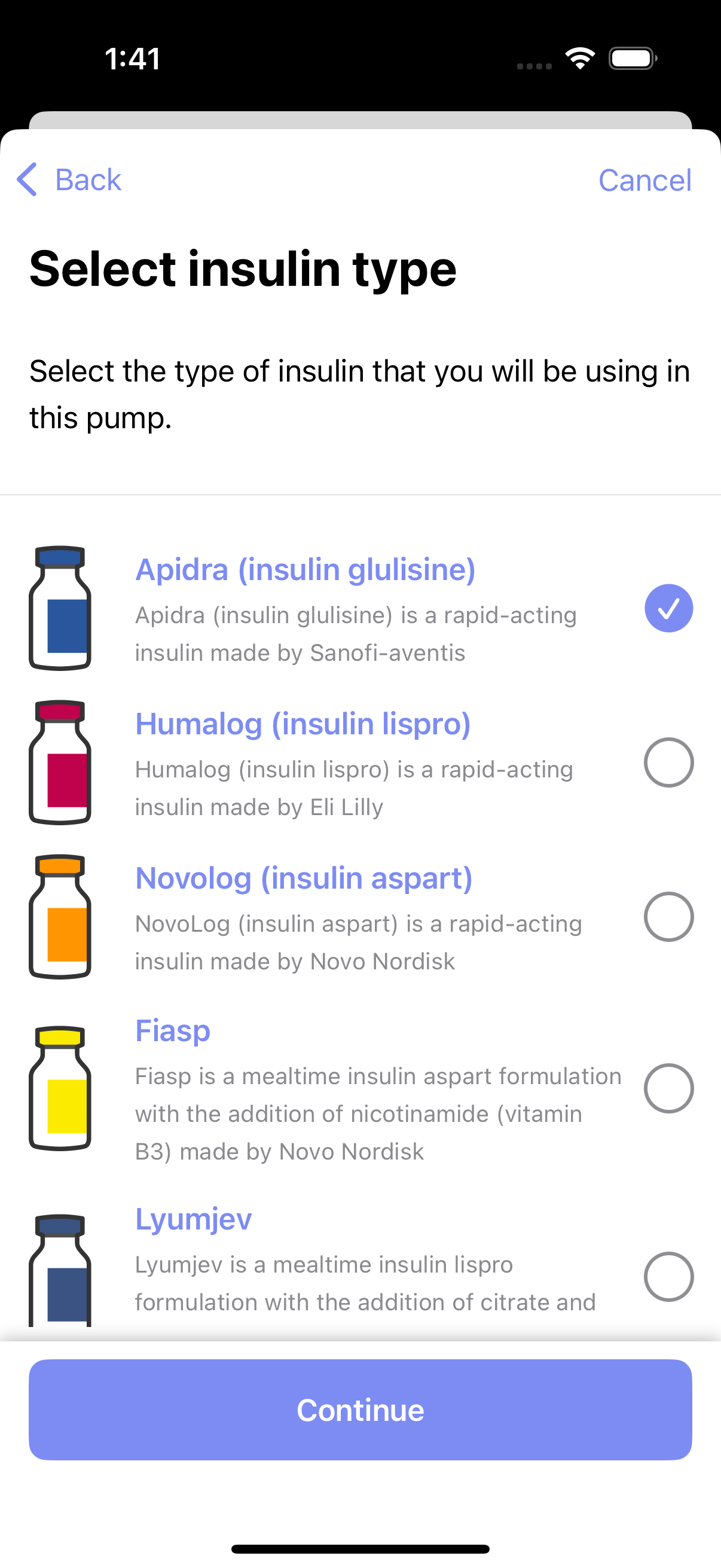

Step 5 Choose your insulin type and tap "Continue"

Step 6 Choose your insulin delivery speed and tap "Continue"

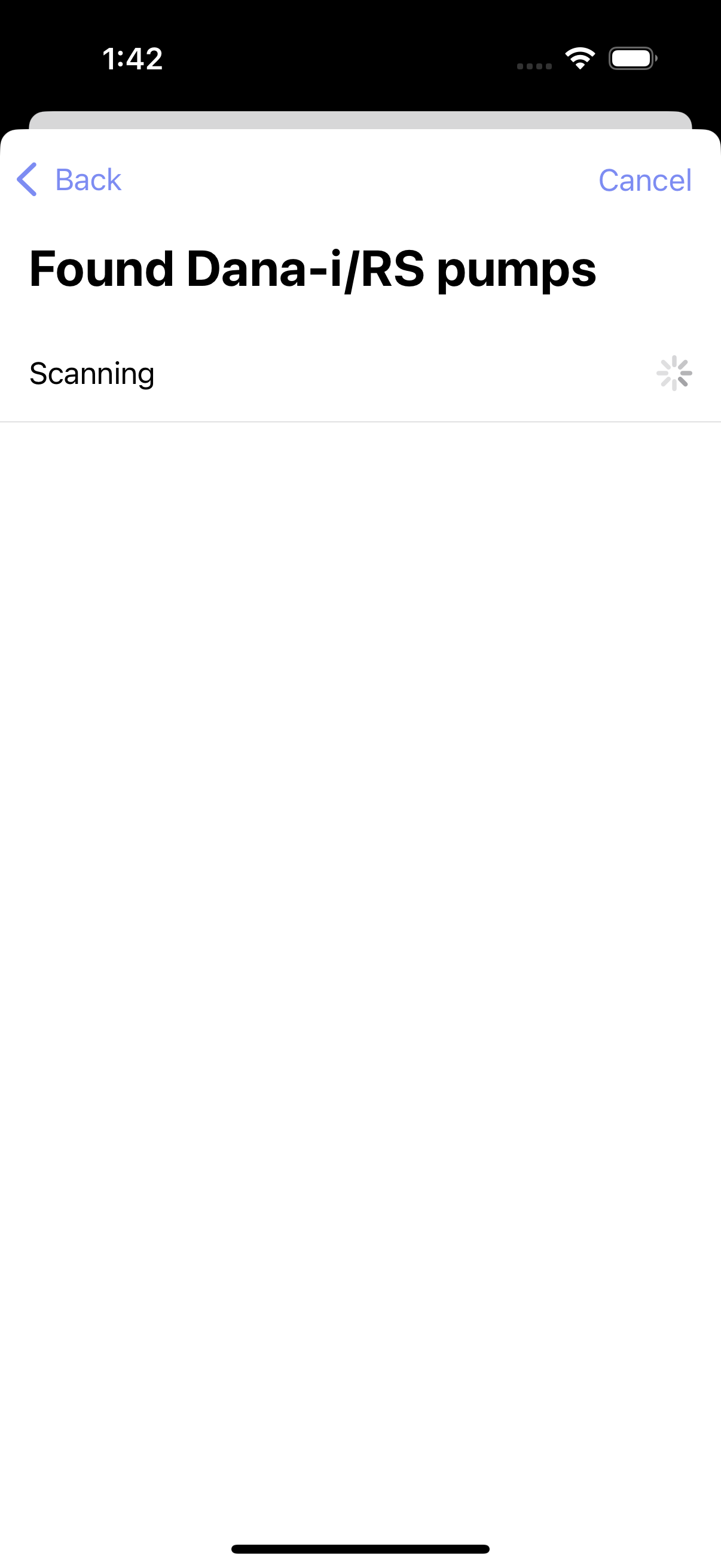

Step 7 Select your pump from the list of found pumps

Step 8 Continue to Connect CGM OR return to New User Setup

Pump Simulator¶

Warning

If using a pump simulator, it is important to understand:

You will only experience the user interface of Trio.
Using a pump simulator does not indicate how the app will perform, nor will it give accurate guidance or suggestions for insulin dosing.
Trio may not run consistently in the background when using a pump simulator.
If you use a pump simulator and switch to a live pump, you must delete all insulin dosing history by uninstalling the Trio app and reinstalling it.
Only use a pump simulator if you understand the conditions above.

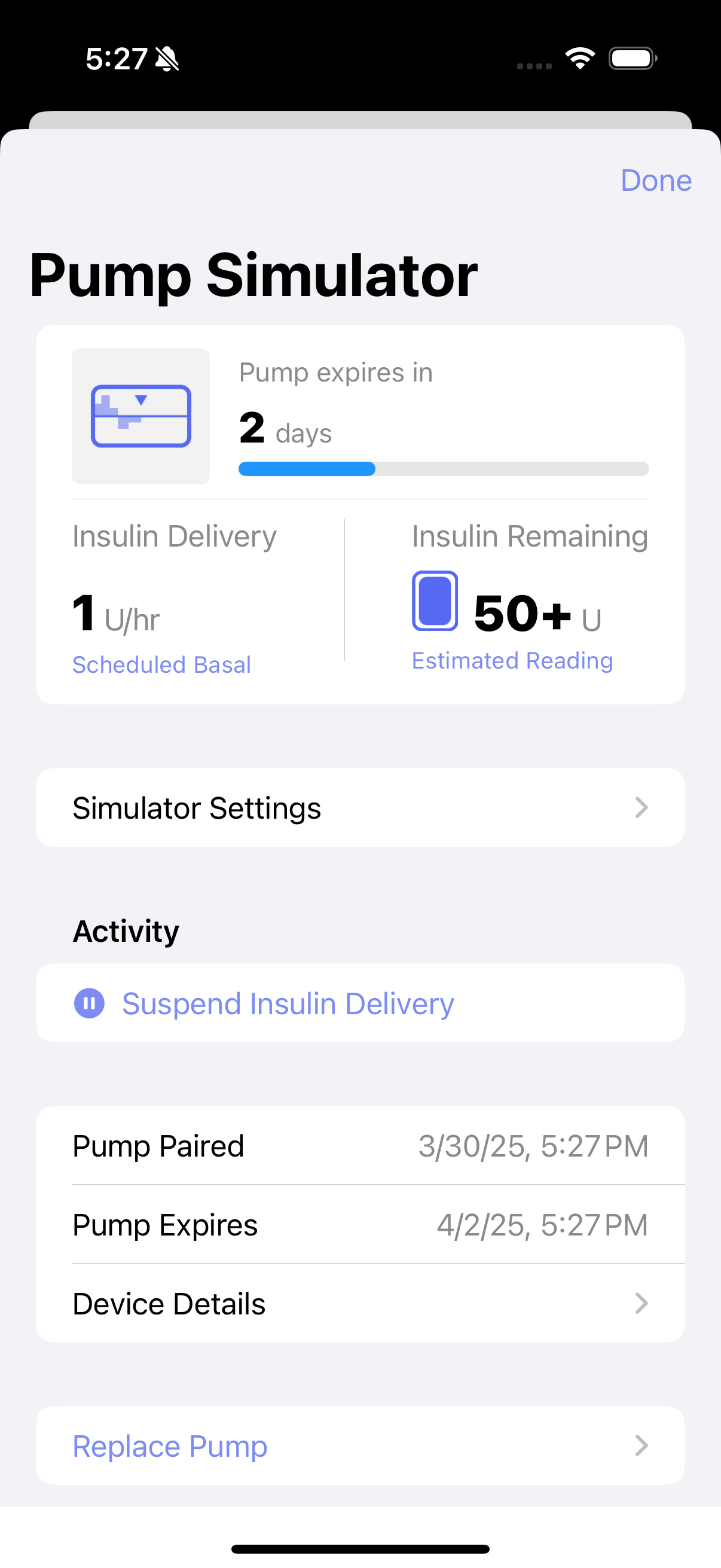

Step 3 Choose from the variety of simulator pump options and tap "Done" in the upper right corner to activate the pump simulator

Step 4 Continue to Connect CGM OR return to New User Setup
